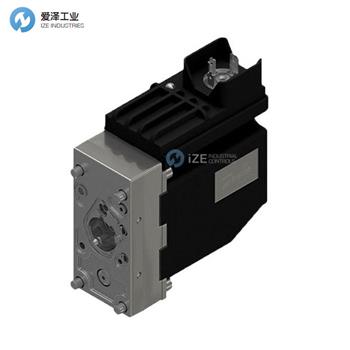

DANFOSS執行器11177353技術參數
Pilot Pressure | 1 | 13.5 (PVE) |
Voltage | 1 | 11-32 |
Connector Type | 2 | 1x4 AMP JPT SAAB |
Connector Direction | U | 90 (Up) |
Control Signal | R | Ratiometric |
CAN Protocol | 0 | N/A |
Digital Type | 0 | N/A |
Float Direction | 0 | N/A |
Hysteresis | 2 | 2.00% |
On-Stroke Response A | C | 350 ms |
On-Stroke Response B | C | 350 ms |
De-Stroke Reaction A | B | 225 ms |
De-Stroke Reaction B | B | 225 ms |
Resolution | A | 50 |
Max Oil Consumption | A | 1,0 l/min |
Max Oil Consump. Steady State | 4 | 0,4 l/min |
Fault Reaction & Recovery | I | Indication Only |
Output Signal | 0 | N/A |
Disable Function | P | Power Save |
Nominel A Stroke | 7 | 7 |
Nominel B Stroke | 7 | 7 |
Minimum Float Position | 0 | N/A |
IP Rating | 6 | IP66 |
Manual Override | 0 | N/A |
Coil Power | 4 | 4 W |
Port Connection Type | 0 | N/A |
A Port Placement | 0 | N/A |
B Port Placement | 0 | N/A |
Extra Function | 0 | N/A |
Valve Side Interface | 0E | PVE32 O-Ring |
Outward Side Interface | 0 | N/A |
Length | 89 | 89 |
Pilot Pressure Neutral | 0 | N/A |
Pilot Pressure Full Stroke | 0 | N/A |
Maximum System Pressure Peaks | C | 60 |
Primer | 0 | N/A |
Product Category | 1 | Standard Part |
Marking | 2 | CE EAC |
Ex Application | 0 | N/A |
Certification | CS | ISO13849 Compliant |
PVDI connector coding | 0 | N/A |
Marking | 2 | CE EAC |
Port Size | 0 | N/A |
Product type | SVS_ELEC | Electrical Actuator |
Voltage | 1 | 11-32 |
DANFOSS執行器介紹
電動執行
比例閥電液執行器在不同條件下提供快速、準確和可靠的閥門操作。提供多種速度和滯后能力，精確符合應用需求，所有執行器都設計為可與我們的PLUS+1?操作桿和控制器即插即用。
特點和優點
Deutsch、AMP或DIN連接器
滑閥的開/關驅動
基于高電流PWM信號、比率電壓信號、固定0到10V信號或CAN總線信號的滑閥比例驅動
帶內置LVDT傳感器的滑閥閉環控制
適用于采礦和海上等應用的EX執行器（可選）
ISO總線/J1939或CANopen通信協議（可選）
具有分布式智能的CAN總線執行器，用于高級滑閥控制（可選）
Electrical actuation
Our proportional-valve electro-hydraulic actuators provide fast, accurate, and reliable valve operation under varying conditions. We offer a wide variety of speed and hysteresis capabilities to precisely suit your application needs, and all actuators are designed to plug and perform with our PLUS+1? joysticks and controllers.
Features and benefits
Deutsch, AMP or DIN connectors
ON/OFF actuation of spool
Proportional actuation of spool based on high current PWM signal, ratio-metric voltage signal, fixed 0 to 10V signal or CAN bus signal
Closed loop control of spool with built-in LVDT sensor
EX actuator for applications such as mining and offshore (optional)
ISO bus/J1939 or CANopen communication protocols (optional)
CAN bus actuator with distributed intelligence for advanced spool control (optional)
DANFOSS執行器其他常用型號：
DANFOSS 11177353
DANFOSS SVSELEC112UR0002CCBBA4A47I0P7706040000000E00089
DANFOSS SVSELEC11HUR0002CCBBA4044AD07707080000000E00106
DANFOSS SVSELEC11EUR0002CCBBA4044A007707080000000E00106
DANFOSS SVSELEC112UR0002CCBBA4044I007706080000000E00106
DANFOSS SVSELEC114UR0002CCBBA4044ID07706080000000E00106
DANFOSS SVSELEC114UR0002CCBBA4044AD07706080000000E00106
DANFOSS SVSELEC112UR0002CCBBA4044I007706080000000E00106
DANFOSS Actuator NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于DANFOSS執行器11177353的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for DANFOSS products, please feel free to dial 0086-21-3100 6702/ send request email to sales@www.agcjj.cn / browse our website:www.www.agcjj.cn.
