DANFOSS執行器11166829技術參數
Product specifications | |
Compliant to certificate | ISO13849 Compliant |
Connector Type | 1x4 DIN 43650-A/ISO4400 |
Control Signal | Ratiometric |
Control Signal | Ratiometric |
Direction of the Connector | 90 (Up) |
Fault Reaction & Recovery | Indication Only |
Function where the PVE turn of the coils. | Power Save |
Global status | Standard Part |
Hysteresis | 0.15 |
Interface of the matching part | PVE32 O-Ring |
Internal Pilot Pressure | 13.5 (PVE) |
IP Rating | IP65 |
Length of the module | 89 |
Marking | CE EAC |
Maximum Oil Consumption in fixed position | 0 l/min |
Maximum Oil Consumption when activating | 0,5 l/min |
Maximum Oil Pressure Spikes the component can withstand intermittently | 60 |
Nominal distance A stroke | 7 |
Nominal distance B stroke | 7 |
Operating Voltage of the item | 11-32 |
Power consumption of the coil measured in watt | 8 W |
Product Marking identification | CE EAC |
Reaction time to maximum spool stroke A | 225 ms |
Reaction time to maximum spool stroke B | 120 ms |
Resolution | 25 |
Time for the Electric Actuator to De-Stroke from A side | 225 ms |
Time for the Electric Actuator to De-Stroke from B side | 120 ms |
Voltage | 11-32 |
DANFOSS執行器11166829產品介紹

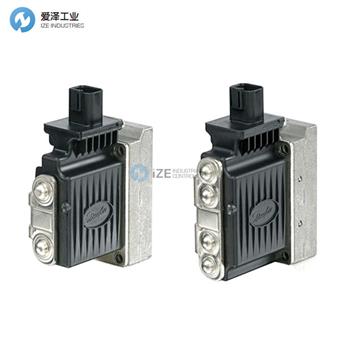

PVEM32-執行器--S7-1x4DIN-3W.M-PAS-PS
PVEM32-ACTUATOR--S7-1x4DIN-3W.M-PAS-PS
DANFOSS執行器PVE系列其他常用型號：
DANFOSS 11006205
DANFOSS 11020776
DANFOSS 11020888
DANFOSS 11021192
DANFOSS 11024043
DANFOSS 11025195
DANFOSS 11026813
DANFOSS 11027728
DANFOSS 11027729
DANFOSS 11028554
DANFOSS 11030821
DANFOSS 11031360
DANFOSS 11033384
DANFOSS 11034449
DANFOSS 11034832
DANFOSS 11036290
DANFOSS 11037047
DANFOSS 11043099
DANFOSS 11043283
DANFOSS 11044915
DANFOSS 11054308
DANFOSS 11055388
DANFOSS 11057464
DANFOSS 11166829
DANFOSS ACTUATOR NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于DANFOSS執行器11166829的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for DANFOSS products, please feel free to dial 0086-21-3100 6702/ send request email to sales@www.agcjj.cn / browse our website:www.www.agcjj.cn.
