NIDEC伺服電機089UDC306BAECA技術參數
Frame Size | 089 |
Motor Voltage | UD = 460 V |
Stator Length | C |
Speed | 30 = 3000 rpm |
Brake (24 V) | 6 = Parking Brake |
Connection Type | B = Power size 1.0 and Signal 90° and Rotatable |
Output Shaft | A = Keyway w/ full key installed |
Feedback Device | EC = Inductive Multi-turn EnDat |
Inertia | A = Std. + PTC |

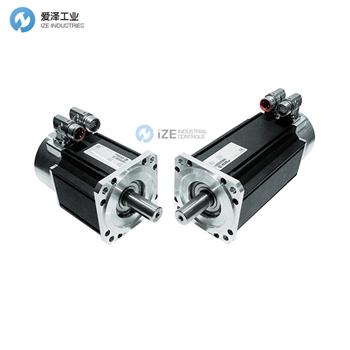

NIDEC伺服電機Unimotor hd系列介紹
Unimotor hd 無刷交流伺服電機系列專為大扭矩密度而設計，為在快速加速和減速過程中需要高扭矩的應用提供了緊湊的低慣量解決方案。 配備高分辨率 SinCos 或絕對編碼器的 Unimotor hd 電機在制造過程中預加載了電機“電子銘牌”數據。 大多數 Control Techniques 的伺服驅動器都可以讀取該數據，并用于自動優化驅動器設置。 此功能簡化了調試和維護，確保性能一致并節省時間。 Unimotor hd 扭矩曲線與 Digitax ST 伺服驅動器緊密匹配，可提供高達 300% 的峰值過載，從而實現更大的動態性能。
主要特征
? 扭矩范圍：6.4 至 752 lb-in（0.72 至 85.0 Nm）
? 高扭矩慣量比，實現高動態性能
? 結構緊湊、功能強大
? 可選抱閘
? 符合IP65標準
? 分段定子設計
? 繞組適合 230 V 和 460 V
? 速度包括 2000、3000、4000 和 6000 rpm
? 大軸可提高扭轉剛度
? 多種反饋選項：
— 增量式編碼器：高精度、中分辨率
— 絕對式：中等精度、中等分辨率、單圈和多圈
— SinCos/絕對：高精度、高分辨率、單圈和多圈
— 支持 HIPERFACE (SICK) 和 EnDat (Heidenhain) 協議
— 旋轉變壓器：堅固耐用，適合極端應用和條件； 精度較低，分辨率中等
Designed for maximum torque density, the Unimotor hd brushless AC Servo motor series provides an exceptionally compact, low inertia solution for applications that require very high torque during rapid acceleration and deceleration profiles. Unimotor hd motors fitted with high resolution SinCos or absolute encoders are pre-loaded with the motor “electronic nameplate” data during the manufacturing process. This data can be read by most Control Techniques' servo drives and used to automatically optimize the drive settings. This feature simplifies commissioning and maintenance, ensures consistent performance and saves time. The Unimotor hd torque profile is closely matched to Digitax ST Servo drives providing up to 300% peak overload for maximum dynamic performance.
Key Features
? Torque range: 6.4 to 752 lb-in (0.72 to 85.0 Nm)
? High torque-to-inertia ratio for high-dynamic performance
? Compact and powerful
? Optional holding brake
? IP65 conformance
? Segmented stator design
? Winding to suit 230 V and 460 V
? Speeds include 2000, 3000, 4000 and 6000 rpm
? Large shafts to increase torsional rigidity
? Multiple feedback options:
— Incremental encoder: High accuracy, medium resolution
— Absolute: Medium accuracy, medium resolution, single-turn and multi-turn
— SinCos/absolute: High accuracy, high resolution, single-turn and multi-turn
— HIPERFACE (SICK) and EnDat (Heidenhain) protocols supported
— Resolver: Robust for extreme applications and conditions; lower accuracy, medium resolution

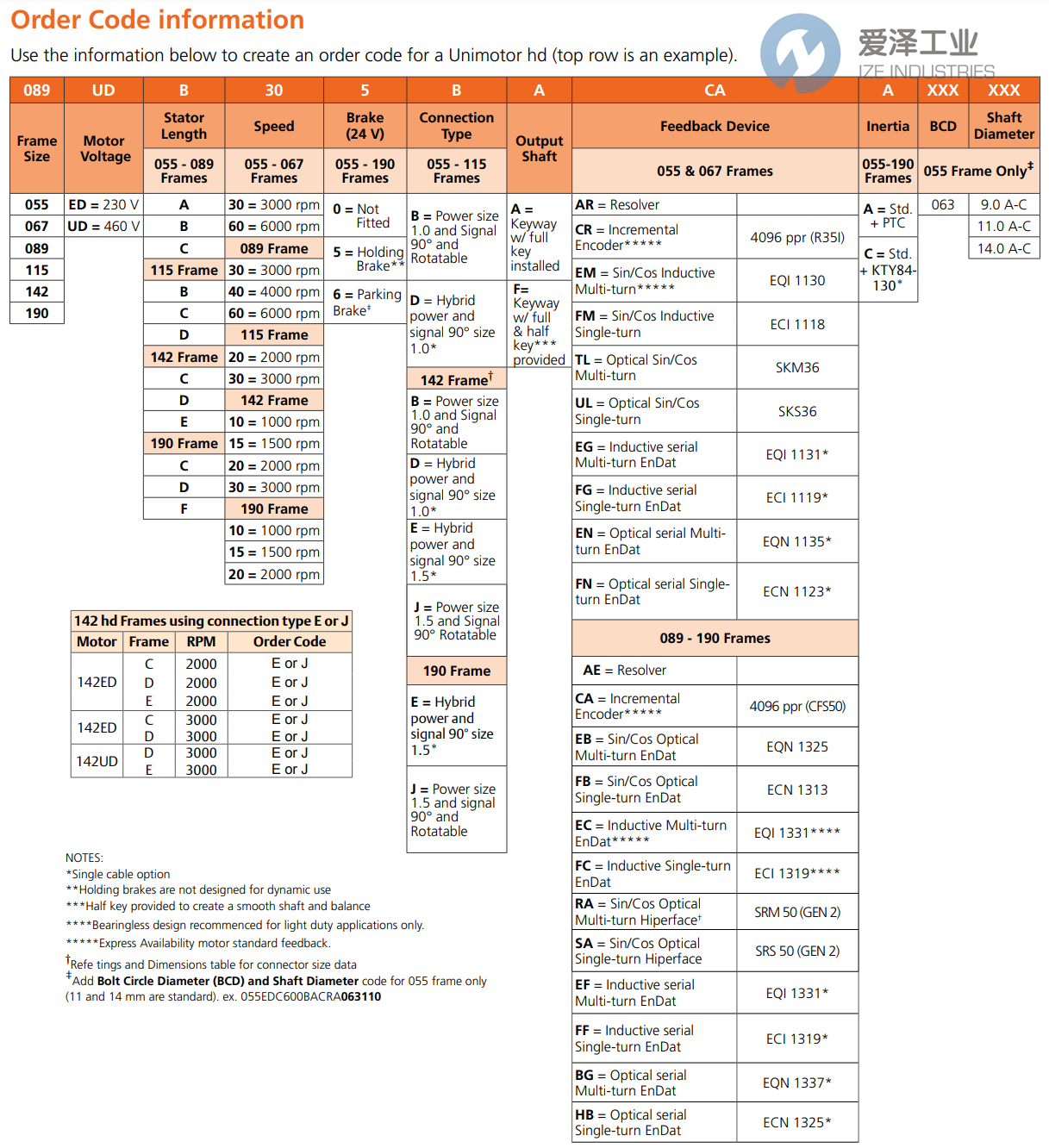

NIDEC伺服電機Unimotor hd系列選型
NIDEC伺服電機Unimotor hd系列其他常用型號：
NIDEC 089EDC300BACAA
NIDEC 089UDC305BACAA
NIDEC 089EDB300BACAA
NIDEC 089EDB400BACAA
NIDEC 089UDB305BAECA
NIDEC 089UDC300BACAA
NIDEC 089UDC306BAECA
NIDEC 089UDB300BAECA
NIDEC 089UDC600BACAA
NIDEC 089EDB306DAEFC
NIDEC 089EDA606DAEFC
NIDEC 089UDB300BAFCA
NIDEC 089UDB305BAECA_SKIT
NIDEC 089UDB306BAECA-SKIT
