CONTROL TECHNIQUES伺服電機067UDA30系列技術參數
Motor frame size (mm) | 067UD |
Voltage (Vrms) | 380-480 |
Frame length | A |
Continuous stall torque (Nm) | 1.44 |
Peak torque (Nm) | 4.35 |
Standard inertia (kg cm2) | 0.3 |
Winding thermal time constant (sec) | 54 |
Standard motor weight (kg) | 1.96 |
Number of poles | 10 |
Speed 3000 (rpm) | Kt (Nm/A) = 0.8 |
Rated torque (Nm) | 1.4 |
Stall current (A) | 1.8 |
Rated power (kW) | 0.44 |
R (ph-ph) (Ohms) | 11.69 |
L (ph-ph) (mH) | 35.2 |
Recommended power conn' size | 1 |

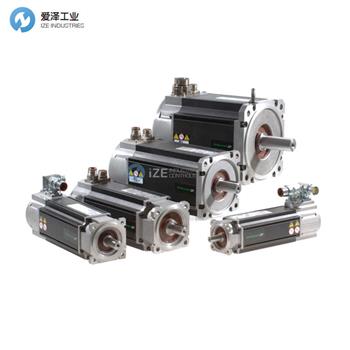

CONTROL TECHNIQUES伺服電機Unimotor HD系列介紹
Unimotor hd 具有廣泛的功能，適合廣泛的工業應用：
? 扭矩范圍：0.64 Nm 至 85 Nm
? 高扭矩慣量比，實現高動態性能
? 結構緊湊但功能強大
? 高能耗停車制動器
? 符合IP65標準； 安裝和連接時密封，可防止水霧和灰塵
? 分段定子設計
? 由嚴格的性能和可靠性測試支持
? 400 V 和 220 V 逆變器電源的繞組電壓
? 額定速度為 1,000 至 6,000 rpm
? 更大的軸可提高扭轉剛度
? 通過 PTC 熱敏電阻/可選 KTY84.130 傳感器進行熱保護
Unimotor hd is suitable for a wide range of industrial applications, due to it’s extensive range of features:
? Torque range: from 0.64 Nm to 85 Nm
? High torque to inertia ratio for high dynamic performance
? Compact but powerful
? High energy dissipation parking brakes
? IP65 conformance; sealed against water spray and dust when mounted and connected
? Segmented stator design
? Supported by rigorous testing for performance and reliability
? Winding voltage for inverter supply of 400 V and 220 V
? Rated speeds from 1,000 to 6,000 rpm
? Larger shafts to increase torsional rigidity
? Thermal protection by PTC thermistor/optional KTY84.130 sensor

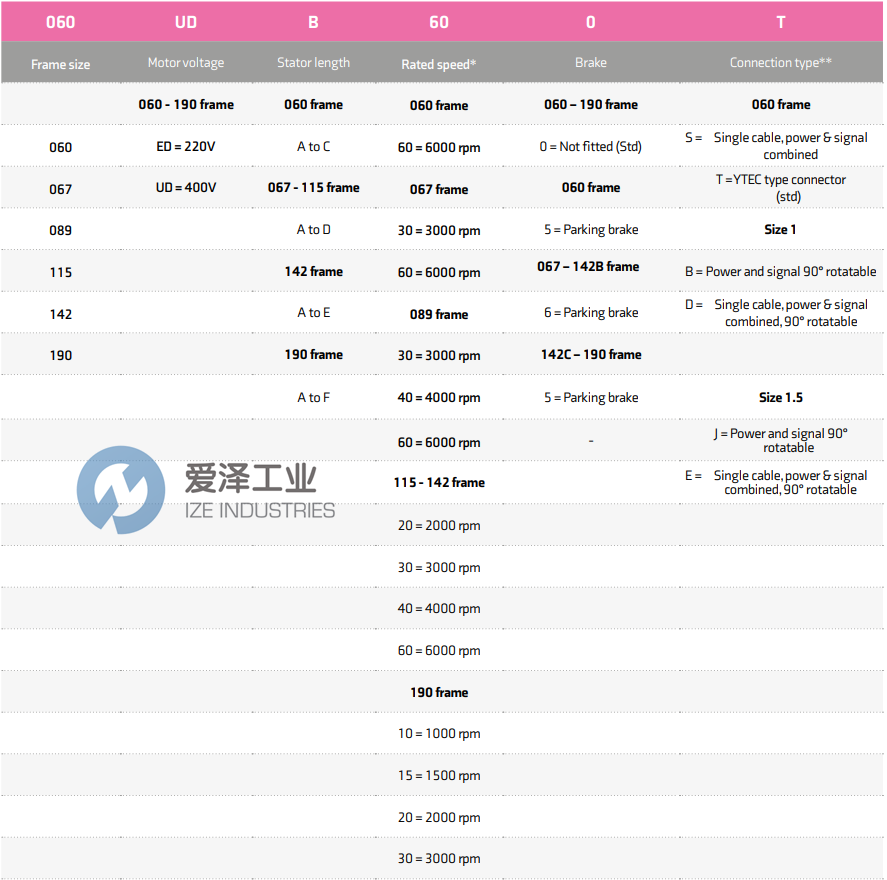

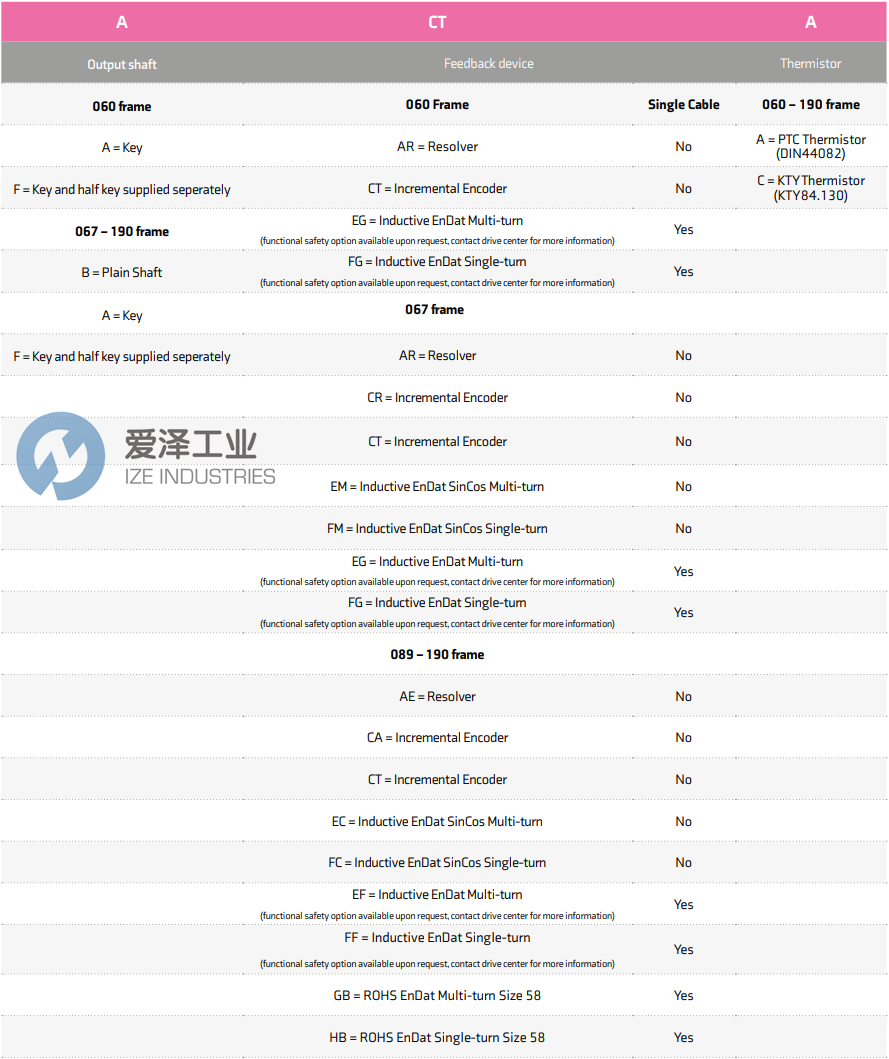

CONTROL TECHNIQUES伺服電機Unimotor HD系列選型
CONTROL TECHNIQUES伺服電機Unimotor HD系列其他常用型號：
CONTROL TECHNIQUES 067UDA300BBEGA_SKIT
CONTROL TECHNIQUES 060UDA600TFCTA
CONTROL TECHNIQUES 060UDB600TFCTA
CONTROL TECHNIQUES 060UDC600TFCTA
CONTROL TECHNIQUES 067UDA300BFCRA
CONTROL TECHNIQUES 067UDB300BFCRA
CONTROL TECHNIQUES 067UDC300BFCRA
CONTROL TECHNIQUES 067UDD300BFCRA
CONTROL TECHNIQUES 089UDA300BFCAA
CONTROL TECHNIQUES 089UDB300BFCAA
CONTROL TECHNIQUES 089UDC300BFCAA
CONTROL TECHNIQUES 089UDD300BFCAA
CONTROL TECHNIQUES 115UDA300BFCAA
CONTROL TECHNIQUES 115UDB300BFCAA
CONTROL TECHNIQUES SERVOMOTOR NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于CONTROL TECHNIQUES伺服電機067UDA300BBEGA_SKIT的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for CONTROL TECHNIQUES products, please feel free to dial 0086-21-3100 6702/ send request email to sales@www.agcjj.cn / browse our website:www.www.agcjj.cn.
CONTROL TECHNIQUES伺服電機Unimotor HD系列067UDA300BBEGA_SKIT技術參數及選型
