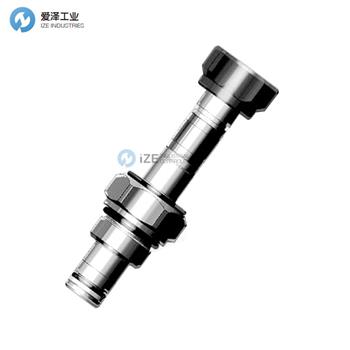

REXROTH閥OD110218200000技術參數
General | |
Weight kg (lbs) | 0.13 (0.29) |
Installation orientation | Optional |
Ambient temperature range °C (°F) | -30 to 60 (-22 to 140) |
Hydraulic | |
Max. operating pressure bar (psi) | 350 (5000) |
Rated flow l/min. (gpm) | 1.5 (0.4) |
Max. internal leakage drops/min. | 20 |
Fluid temperature range °C (°F) | -20 to 80 (-4 to 176) |
Fluids | Mineral-based or synthetics |
Installation torque Nm (ft-lbs) | 39-51 (29-38) |
Filtration | Nominal value max. 25μm (NAS 8) |
Common cavity | CA-08A-2N see RE 18325-70 |
Seal kit | code RG08A2010520100 |
Seal kit coil | code RG12I1PNBR7010 |
Other technical data | See data sheet RE 18350-50 |
Electrical | |
Type of voltage | DC voltage |
Coil type | S8-356 see RE 18325-90 |
Supply voltage | See data sheet RE 18325-90 |
Nominal voltage | ± 10% |
Power consumption W | 20 |
Duty cycle coil % | 100 see RE 18325-90 |
Type of protection | See data sheet RE 18325-90 |

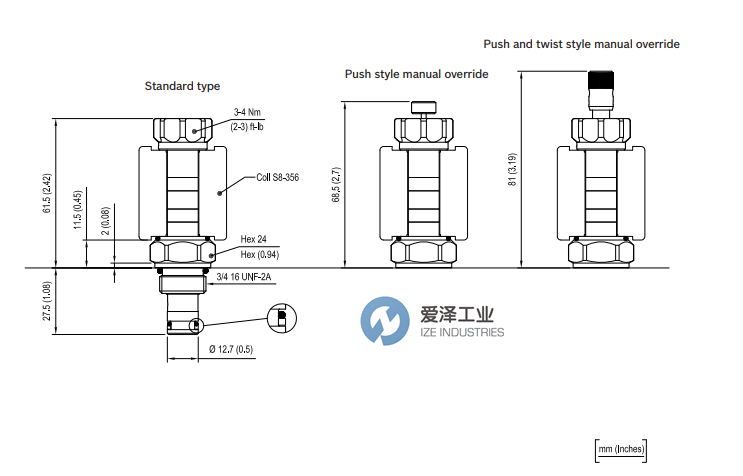

REXROTH閥VED-8I-NA技術尺寸

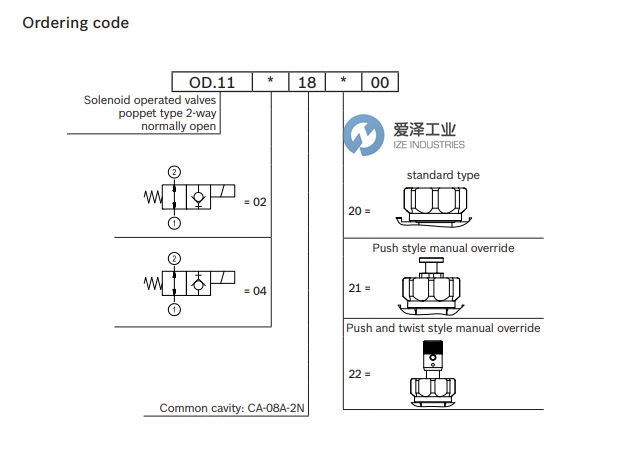

REXROTH閥VED-8I-NA系列選型
REXROTH閥VED-8I-NA系列其他常用型號：
REXROTH OD110218200000 R901090905
REXROTH OD110218210000 R901090906
REXROTH OD110218220000 R901090908
REXROTH OD110418200000 R901090911
REXROTH OD110418210000 R901090914
REXROTH OD110418220000 R901090915
REXROTH VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH閥OD110218200000 R901090905的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for REXROTH products, please feel free to dial 0086-21-3100 6702/ send request email to sales@www.agcjj.cn / browse our website:www.www.agcjj.cn.
REXROTH閥OD110218200000 R901090905技術參數及選型
