WEICON膠粘劑10551024參數特性
Technical Data | |
Base | Epoxy resin highly filled |
Texture | paste consistency, crack-filler |
Colour | grey |
Mixing ratio by weight (Resin / Hardener) | 1:1 |
Density of the mixture | 1,8 g/cm3 |
Viscosity of the mixture at 20°C (+68°F) | 300.000 mPa·s |
Adhesive gap bridging up to max. | 4 mm |
Processing temperature | (+50°F) +10 to (+86°F) +30 °C |
Curing temperature | (+43°F) +6 to (+104°F) +40 °C |
Pot life at 20°C (+68°F) for 10ml material | 3 -4 min. |
Handling strength (35% strength) after | 40 min. |
Capable of bearing mechanical loads (50% strength) after | 2 h |
Final strength (100%) after | 24 h |
Medium strength of the pure epoxy resin according to DIN EN 1465 | |
Pressure | 10 Mpa |
Pull | 24 Mpa |
Bending | 58 Mpa |
E-Modul | 4.000 - 4.500 Mpa |
Shore hardness D | 70 |
Medium shear strength according to DIN EN 1465 at | |
Steel sand blasted | 20 N/mm2 |
Alu sandblasted | 19 N/mm2 |
PVC hard-roughened | 11 N/mm2 |
Linear shrinkage | 0,3 % |
Temperature resistance | (-58°F) -50 to (+293°F) +145 °C |
Thermal diffusivity (23 °C) | 0,286 mm2/s |
Thermal conductivity | 0,51 W/m·K |
Specific heat capacity | 0,904 J/(g·K) |
Resistivity | 4,57 · 10^12 ?m |
ISSA-Code | 75.629.51 |
IMPA-Code | 812981 |
WEICON膠粘劑10551024介紹

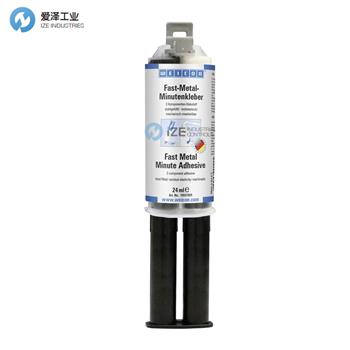

WEICON Fast-Metal Minute Adhesive is ideal for repairs and bondings with larger bonding gaps or bigger tolerances. The gap filling properties make it suitable for rough and poorly fitting surfaces but also to fill in cracks, cavities and unlevelled surfaces.
Fast-Metal Minute Adhesive can be used on numerous materials such as metal, plastic, fibre reinforced materials, ceramics, glass, stone and wood.
WEICON Fast-Metal Minute Adhesive是修復和粘合較大粘合間隙或較大公差的理想選擇。間隙填充特性使其適用于粗糙和不合適的表面，也適用于填充裂縫、空腔和不平整的表面。
Fast-Metal Minute Adhesive可用于多種材料，例如金屬、塑料、纖維增強材料、陶瓷、玻璃、石頭和木材。
WEICON其他常見型號：
WEICON 10551024-35
WEICON 10551025
WEICON Adhesive NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于WEICON膠粘劑10551024的疑問，請隨時與我們電聯，（021-3100 6702），我們將盡全力解決您的問題。
If you have any question for WEICON products, please feel free to dial 0086-21-3100 6702/ send request email to sales@www.agcjj.cn / browse our website: www.www.agcjj.cn.
WEICON膠粘劑10551024描述說明
