CLEANCONTROLLING粒子捕集器VDA系列介紹

CleanControlling 的顆粒捕集器是 VDA 19.2“裝配技術清潔度 - 環境、后勤、人員和裝配設施”的進一步發展，用于檢測裝配環境、進料和加工區域中某些顆粒相關位置的顆粒污染或顆粒體積。

顆粒捕集器的位置可以在環境清潔度/安裝環境內、組裝過程的進料區域中的局部環境以及直接組裝區域中。設置注意事項應代表與未受保護的感興趣組件相關的粒子相關位置。

可以沿著大廳網格找到進一步的安裝方面，以進行室內監控、調查用于表征粒子源的流程、車道、存儲區域、鎖定區域等。

水平放置的粘合墊吸收顆粒并使其沉淀。粘合墊是均勻的，沒有光澤，沒有顆粒預加載。粘合墊在激活前配有保護膜。粒子捕集器具有可拆卸的安裝選項和標簽卡。蓋子關閉，在失活后保護沉淀的顆粒。

暴露時間為 7-10 天。

可以進行補充的立體顯微鏡評估，評估中包括從定義的顆粒尺寸中顆粒的數量和大小，以及分為閃亮的金屬顆粒、非閃亮的顆粒和纖維。

可以通過清潔度或沉降數（也稱為 Illig 值）來補充評估。將各個顆粒尺寸類別的分析結果（顆粒尺寸分布）乘以加權因子，并將加權的顆粒數相加。由于較大顆粒的權重較高，因此需要考慮不斷增加的損壞潛力。將得到的總和值標準化為 1000 cm2 的面積，并與 1 小時的測量時間相關。結果就是所謂的沉降數。使用沉降數的優點是，通過統一的參考變量可以比較沉降結果。通過將結果壓縮為每個測量點一個數字，可以更好地記錄結果并更輕松地進行比較，即使跨部門和工廠也是如此，盡管會丟失細節。

沉降數的通常極限值在潔凈室中為 <50，在發動機潔凈室中為 <200，在發動機裝配中為 <400。根據組件規范允許的最大顆粒尺寸等于組件生產環境潔凈度允許的最大沉降數（通常程序）。

CleanControlling's Particle Trap is a further development of the VDA 19.2 "Technical Cleanliness in Assembly - Environment, Logistics, Personnel and Assembly Facilities" Particle contamination or to observe the particle volume at certain particle-relevant locations in the assembly environment, feed and process areas.

The locations of the particulate trap may be within the environmental cleanliness / mounting environment, the local environment in the feed area of the assembly process, as well as in the immediate assembly area. The setup considerations should represent particle-relevant locations with respect to the unprotected component of interest.

Further installation aspects can be found along a hall grid for performing an indoor monitoring, investigation of processes for the characterization of particle sources, driveways, storage areas, lock areas, etc.

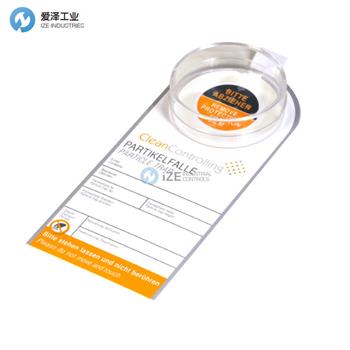

The horizontaly placed adhesive pad absorbs the particles and sediments them. The adhesive pad is homogeneous, not shiny and without particle pre-loading. The adhesive pad is provided with a protective film before activation. The particle trap has a removable mounting option and a labeling card. A lid closes and protects the sedimented particles after deactivation.

The exposure time is 7-10 days.

A supplementary, stereomicroscopic evaluation with the number and size of the particles from a defined particle size as well as a division into shiny metallic particles, non-shiny particles and fibers is possible.

The evaluation can be supplemented by means of a cleanliness or sedimentation number (also called Illig value). The analysis result (particle size distribution) in the individual particle size classes is multiplied by a weighting factor and the weighted particle numbers are summed up. Due to the higher weighting of the larger particles, the growing damage potential is taken into account. The resulting sum value is normalized to an area of 1000 cm2 and related to a measuring time of 1 h. The result is the so-called sedimentation number. The use of the sedimentation number has the advantage that the sedimentation results by a unified reference variables is comparable. By compressing the results to one number per measuring point, the results can be better documented and compared more easily, even across divisions and plants, although details are lost.

The usual limit values of the sedimentation number are <50 in cleanroom, <200 in engine cleanroom and <400 in engine assembly. The maximum permissible particle size according to the component specification equals the maximum permissible sedimentation number for ambient cleanliness for component production (usual procedure).

CLEANCONTROLLING粒子捕集器VDA系列其他常用型號：

CLEANCONTROLLING 30001-10

CLEANCONTROLLING 30001-100

CLEANCONTROLLING 30001

CLEANCONTROLLING 30023

CLEANCONTROLLING 30043

CLEANCONTROLLING 3006818

CLEANCONTROLLING 30005

CLEANCONTROLLING PARTICLE TRAP NEW + ORIGINAL+ ONE YEAR WARRANTY
