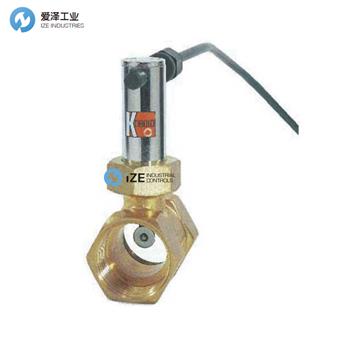

德國KOBOLD流量計PSR系列PSR-11103R10R1描述：

The KOBOLD flow monitor types PSE and PSR are simple, reasonably-priced and reliable monitors of fuid motions.

Depending on the flow velocity/flow throughput, the baffle plate is defected and it moves over the balance arm the permanent magnet into the operating range of the reed contact mounted outside the process fluid.

The leaf spring, which also serves as a support for the balance arm, forces the baffle plate back to its rest position when there is no flow. KOBOLD baffle plate flow monitors are supplied completely assembled with pipe length up to nominal size 40. For bigger nominal pipe sizes the devices are supplied without pipe length for direct fitting and are screwed into standard T pieces or reducing pipes. PTFE tape is used for sealing.

應用Applications

Cooling and lubricant circuits

Dry running protection for pumps

Prevention of low water levels

Monitoring of pipe fracture

Special advantages

Pressure-resistant, forged case for model PSR-xx08...PSR-xx25

Baffle plate system made of spring stainless steel. This precludes bending of paddle even with flow rates well outside the switching range

Baffle plate exchangeable

德國KOBOLD流量計PSR系列PSR-11103R10R1

愛澤工業(IZE INDUSTRIES)特價經銷、常用備件型號：

KOBOLD流量計PSR-11103R10R1

KOBOLD流量計PSR-111083

KOBOLD流量計PSR-11103

KOBOLD流量計PSR-11153

KOBOLD流量計PSR-11206

KOBOLD流量計PSR-11258

KOBOLD流量計PSR-1132B

KOBOLD流量計PSR-1140B

KOBOLD流量計PSR-11082

KOBOLD流量計PSR-11081

KOBOLD流量計PSR-11102

KOBOLD流量計PSR-11152

KOBOLD流量計PSR-11151

KOBOLD流量計PSR-11205

KOBOLD流量計PSR-11204

KOBOLD流量計PSR-11201

KOBOLD流量計PSR-11257

KOBOLD流量計PSR-11255

KOBOLD流量計PSR-11254

KOBOLD流量計PSR-11251

愛澤工業專業提供德國KOBOLD流量計PSR系列PSR-11103R10R1，德國KOBOLD全系列產品，KOBOLD流量計，KOBOLD壓力開關，KOBOLD壓力傳感器，KOBOLD壓力表等等。

愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的首選渠道。

如果有任何關于德國KOBOLD流量計PSR系列PSR-11103R10R1的疑問，請隨時與我們聯系（021-31006702）。我們將盡全力解決您的問題。

有關德國KOBOLD更詳細的信息或者購買德國KOBOLD相關產品，請聯系愛澤工業。
