THERMO FISHER二氧化硅分析儀2230XP技術參數
Current Loops | Two 0/4-20mA – Direct or Reverse Acting (Isolated). Maximum 900ohm load. |
Description | 2230XP Silica Analyzer |
Frequency | 50/60 Hz |
Height (English) | 6 in. |
Height (Metric) | 158 mm |
Length (English) | 27 in. |
Length (Metric) | 695 mm |
Temperature (English) Operating | 32°F to 113°F |
Voltage | 100 to 240 VAC |
Temperature (Metric) Operating | 0°C to 45°C |
Accuracy | Less than 5% of reading or ±0.5ppb, whichever is greater, from 0 to 300ppb. Less than 10% of reading from 300 to 5000ppb. |
Resolution | 0.5ppb in all ranges |
Repeatability | Less than ±2% of reading or ±0.5ppb, whichever is greater from 0 to 300ppb. Less than ±5% of reading from 300 to 5000ppb. |
Response Time | Less than 15 minutes per analysis |
Width (English) | 15 in. |
Width (Metric) | 395 mm |
Weight (English) | 40 lb. |
Weight (Metric) | 18 kg |
Enclosure Rating | NEMA12 (Electronics cabinet), NEMA4X (Fluidics cabinet) |
Flow Rate | 50 to 1000mL/min |
Communication Details | RS232 ASCII protocol for data reporting |
Max. Relative Humidity | 90% at 40°C |
Regulatory Details | Safety CE: EN/IEC61010-1, cTUVus; EMC CE: EN61326; FCC Part 15 Class A |
Relay Details | Four SPDT, 5A at 240V - Programmable |
Detection Limits | 0.5ppb |
Inlet/Outlet | 1/4 in. O.D. flexible tubing, polypropylene or similar material |
Measurement Ranges | 0 to 5000ppb auto-ranging or user Programmable. Minimum Programmable Span is 0 to 100ppb. |
Methods | Optical absorption at 810nm |
Pressure | 5psi max. |
Sample Pressure | 5psi max. |
Sample Streams | One |
Sample Supply | Continuous |
Suspended Solids | Less than 60μm |
Dimensions (L x W x H) | 27 x 15 x 6 in. (695 x 395 x 158mm) |
Electrical Requirements | 100 to 240VAC, 50/60Hz |
THERMO FISHER分析儀其他常用型號：
THERMO FISHER 2230XP
THERMO FISHER 2111XP
THERMO FISHER 2120XP
THERMO FISHER 2110XP
THERMO FISHER 2118XP
THERMO FISHER 2111LL
THERMO FISHER 2210AM
THERMO FISHER 2117LL

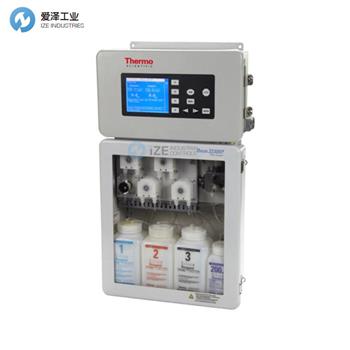

THERMO FISHER二氧化硅分析儀2230XP產品介紹
Thermo Scientific?Orion?2230XP二氧化硅分析儀設計用于連續在線測量反應性二氧化硅，以保護關鍵任務系統。 Orion 2230XP分析儀的優化設計有助于減少試劑消耗和總體擁有成本。
The Thermo Scientific? Orion? 2230XP Silica Analyzer is designed for continuous and online measurement of reactive silica to protect mission critical systems. The optimized design of the Orion 2230XP Analyzer helps reduce the reagent consumption and overall cost of ownership.
THERMO FISHER Silica Analyzer NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于THERMO FISHER二氧化硅分析儀2230XP的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for THERMO FISHER products, please feel free to dial 0086-21-3100 6702/ send request email to sales@www.agcjj.cn / browse our website: www.www.agcjj.cn.
