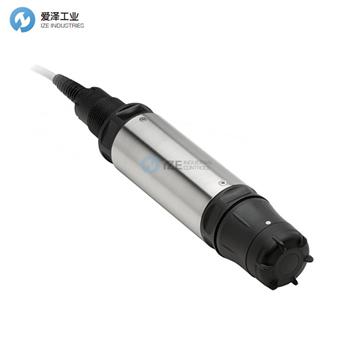

HACH傳感器LXV416.99.20001產品參數
Specifications | |
Accuracy:： | ±0.05 mg/L @ DO < 1 mg/L |
Cable length: | 10米 |
Calibration method: | All probes are factory calibrated and ready to use Air calibration: one point, 100% water saturated air Sample calibration: comparison to standard instrument |
Communication: | Modbus via SC200 or SC1000 controller |
Diameter: | 48.25 mm |
Dimensions (D x L): | 48.25 mm x 254 mm |
Flow rate: | None required |
Hazardous location ratings: | ETL listed (cETLus marked) to Canadian and US General Safety and Hazardous (Class l, Div. 2) Locations |
Housing material: | Stainless |
Immersion depth: | 15 m, 1050 kPa, maximum |
Interferences: | No Interferences from the following: H2S, pH, K+, Na+, Mg2+, Ca2+, NH4+, Al3+, Pb2+, Cd2+, Zn2+, Cr (total), Fe2+, Fe3+, Mn2+, Cu2+, Ni2+, Co2+, CN-, NO3-, SO42-, S2-, PO43-, Cl-, anion active surfactants, crude oils, Cl2 < 4 ppm |
Length: | 254 mm |
Measuring range: | 0.01 - 20.00 mg/L |
Operating temperature range: | 0 - 50 °C |
Options: | None |
pH range: | 0 - 12 pH |
Pressure range: | Max. 3.5 bar |
Protection class: | IP68 |
Region: | Global |
Relative humidity: | 95 % (non-condensing) |
Repeatability: | ±0.1 mg/L |
Resolution: | 0.01 mg/L DO |
Response time: | T90 < 40 s |
Sensor cable: | 10 m terminated with quick-disconnect plug |
Sensor thread: | 1" NPT outer thread |
Sensor to controller distances (maximal): | 1000 m |
Storage conditions: | -20 °C - 70 °C |
Temperature sensor: | PT100 integrated, external sensor |
Transmission distance: | 1000 m maximum when used with a junction box |
Warranty: | Probe body: 3 years |
Weight: | 1.0 kg (probe only) |
Wetted materials: | Probe body: CPVC, Polyurethane, Viton, Noryl, 316 Stainless Steel 1.4404 (AISI 316L) |
HACH傳感器產品介紹
The new LDO generation - even simpler, even more reliable and even more cost-effective
Immersion or flow-through probe with optical luminescence measuring method. Calibration-free & drift-free.
No electrolyte or membrane changes due to the optical measurement method. The new LDO probe ensures there is only a minimal amount of maintenance. The luminescence method means the measurement is unaffected by any type of interference.
Years of practical experience have shown that this method completely overcomes the disadvantages of traditional electrochemical O2 measurement methods.
Prognosys is a predictive diagnostic system that allows you to be proactive in your maintenance, by alerting you to upcoming instrument issues. Know with confidence whether changes in your measurements are due to changes in your instrument or your water.
新一代LDO-更簡單，更可靠，更具成本效益
浸入式或流通式探針采用光學發光測量方法。免校準和免漂移。
光學測量方法不會使電解質或膜發生變化。新的LDO探頭可確保僅進行最少的維護。發光法意味著測量不受任何類型的干擾的影響。
多年的實踐經驗表明，該方法完全克服了傳統電化學O2測量方法的缺點。
Prognosys是一種預測性診斷系統，通過提醒即將出現的儀器問題，可以主動進行維護。有信心地知道測量值的變化是由于儀器或水的變化引起的。
HACH傳感器LXV系列其他常見型號：
HACH LXV416.99.20001
HACH LXV416.99.20W01
HACH LXV415.99.10001
HACH LXV416.99.20S01
HACH LXV416.99.20W01
HACH LXV417.99.10001
HACH LXV417.99.20001
HACH LXV417.99.50001
HACH LXV418.99.10001
HACH LXV418.99.20001
HACH LXV418.99.50001
HACH LXV418.99.90001
