FISCHER鐵元素含量儀探頭EGAB系列

請注意:照片可能并不是實際產品,具體請參閱標題和產品規格及所有細節描述。
產品品牌:
型號:EGAB1.3-Fe 602-221

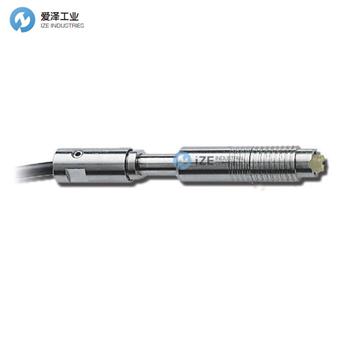

FISCHER探頭EGAB1.3-Fe 602-221
預估貨期:
關  鍵  詞:FISCHER探頭FGAB1.3-Fe604-264EGAB1.3-Fe 602-221
相似產品:
是否有問題?聯系我們工作人員
  郵件聯系

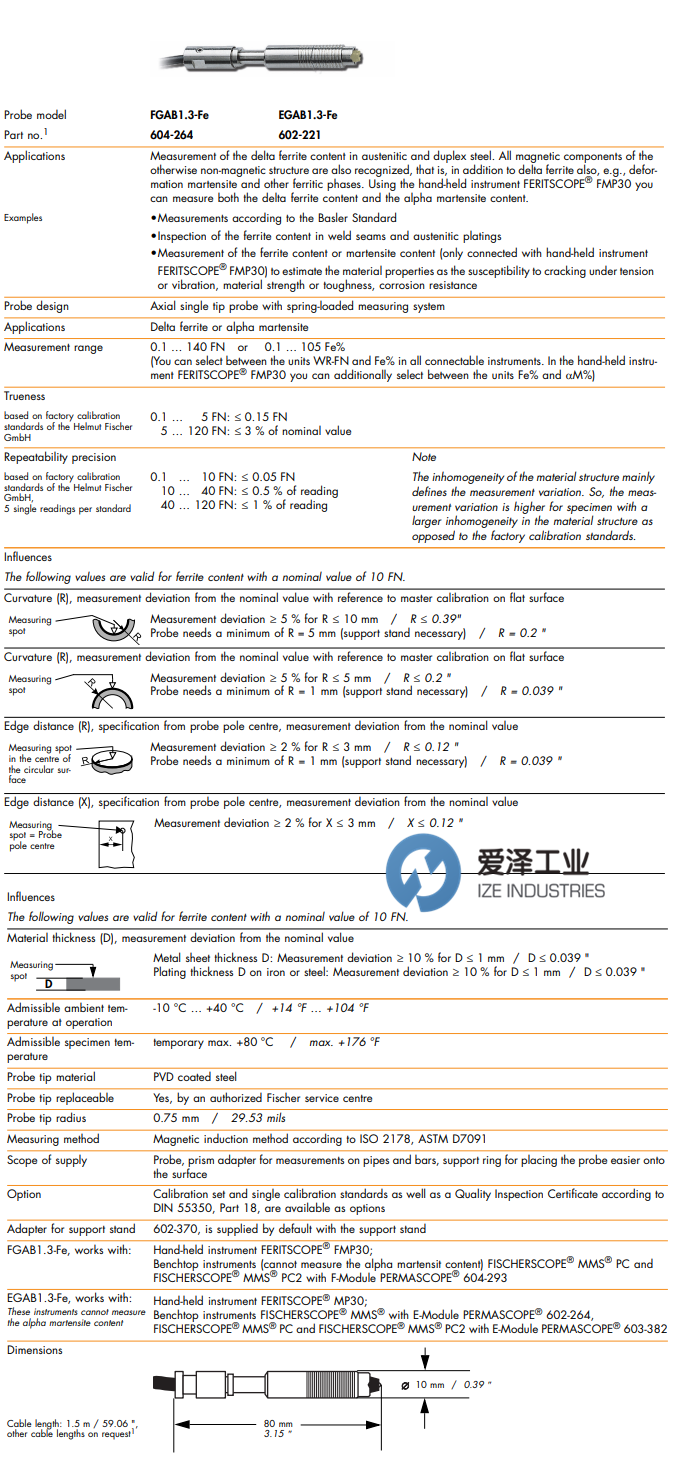

FISCHER探頭EGAB1.3-FE 602-221數據介紹

Probe model
Part  no.1

EGAB1.3-Fe
604-264

EGAB1.3-Fe
602-221

Applications

Measurement of the delta ferrite content in austenitic and duplex steel. All magnetic components of the otherwise non-magnetic structure are also recognized, that is, in addition to delta ferrite also, e.g., defor- mation  martensite  and  other  ferritic  phases.  Using  the  hand-held  instrument  FERITSCOPE?  FMP30  you can measure both the delta ferrite content and the alpha martensite content.

Examples

?Measurements  according  to  the  Basler  Standard
?Inspection of the ferrite content in weld seams and austenitic platings
?Measurement of the ferrite content or martensite content (only connected with hand-held instrument FERITSCOPE?  FMP30) to estimate the material properties as the susceptibility to cracking under tension or  vibration,  material  strength  or  toughness,  corrosion  resistance

Probe design

Axial single tip probe with spring-loaded measuring system

Applications

Delta ferrite or alpha martensite

Measurement range

0.1 … 140 FN    or 0.1 … 105 Fe%
(You can select between the units WR-FN and Fe% in all connectable instruments. In the hand-held instru- ment FERITSCOPE?  FMP30 you can additionally select between the units Fe% and aM%)

Trueness

based on factory calibration standards of the Helmut Fischer GmbH

0.1 … 5 FN: ≤ 0.15 FN
5 … 120 FN: ≤ 3 % of nominal value

Repeatability precision

Note

based on factory calibration standards of the Helmut Fischer GmbH,
5 single readings per standard

0.1   …   10 FN: ≤ 0.05 FN
10 …   40 FN: ≤ 0.5 % of reading
40 … 120 FN: ≤ 1 % of reading

The inhomogeneity of the material structure mainly defines the measurement variation. So, the meas- urement variation is higher for specimen with a larger inhomogeneity in the material structure as opposed to the factory calibration standards.

愛澤工業(ize-industries)并不是本網站所列所有產品的授權代理商或經銷商。 本網站使用的所有產品名稱,商標,品牌等均屬于各自品牌廠家所有。 本網站在產品或圖片描述中,出現具有這些名稱,商標,品牌等信息的產品僅用于識別目的,并非旨在表明任何與持有者的從屬及授權關系。

FISCHER探頭EGAB1.3-FE 602-221產品介紹

探頭(接觸式測量儀)

為了獲得準確的結果,測量探頭必須具有適合各種應用的某些特殊性能。選擇合適的探頭對測量結果的質量有很大影響,因為它是傳輸實際測量信號的途徑。適用于涂鍍層厚度測量和材料測試。



特性

耐磨損的探頭確保了較長的使用壽命

彈簧壓接系統可確保幾乎恒定的接觸壓力,甚至在手動測量期間也同樣如此

為每個探頭進行單獨的出廠校準,從而保證其實現極高的測量精度

有大量不同性能與幾何形狀的高質量探頭可供選擇



應用:

測量范圍從納米級到毫米級不等

磁性底材上的非鐵磁性涂鍍層

導電非鐵磁性底材上的非鐵磁性和非導電性涂鍍層

各種底材上的導電性涂鍍層

非鐵磁性導電底材上的鐵磁性涂鍍層

非鐵磁性材料的電導率測量、材料特性測試,如:微觀結構以及由熱損傷或材料疲勞導致的材料性能轉變

奧氏體鋼和雙相鋼上的鐵素體和馬氏體含量測試



FISCHER探頭EGAB1.3-FE 602-221參數介紹

FISCHER探頭FGAB1.3-FE 愛澤工業 izeindustries.png



FISCHER探頭EGAB1.3-FE 602-221型號

FISCHER FGAB1.3-Fe 604-264

FISCHER EGAB1.3-Fe 602-221
