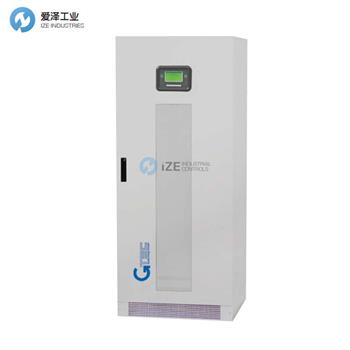

GTEC電源LB010MP技術參數
Model | LB010MP |
Nominal power | 10 |
Active power | 9 |
MAIN INPUT | |
Grid system | 3 Phases + Ground |
Rated voltage / Frequency | 380/400/415VAC (Phase-Phase), 50/60Hz |
Voltage range | 300~480 VAC |
Power factor | 0.9 |
Current THDi | 25% (5% for MPF version with input filter*) |
Power walk-in | 0 ÷ 100% in 30 sec (selectable) |
Standard features | Back Feed protection and splitted bypass line |
BYPASS INPUT | |
Grid system | 1 Phase + Neutral + Ground |
Rated voltage / Frequency | 220/230/240VAC (Phase-Neutral), 50/60Hz |
Voltage range | Default: -20% ~ +20% |
Frequency range | ± 2% (selectable from 1% to 5%) |
Bypass overload | 110%, 60 minutes |
OUTPUT | |
Rated voltage / Frequency | 220/230/240VAC (Phase-Neutral), 50/60Hz |
Power factor | 0.9 |
Voltage THDv | <1% (from 0% to 100% linear load); |
Voltage precision | ± 1% |
Transient response | ± 5% in 10 msec |
Inverter overload | 110%, 60 minutes |
Frequency stability | 50/60Hz ±0.05% |
Crest factor | 3:1 |
BATTERIES | |
Battery type | Pb sealed acid, Wet, Ni-Cd |
Ripple | < 1% |
Typical charging current | 0,1 x C10 |
Number of batteries | Standard: 32 batteries 12V |
Batteries arrangement | Internal and/or external |
SYSTEM | |
Efficiency - Normal operation | 0.92 |
Efficiency - Eco Mode operation | 0.98 |
Efficiency - Battery operation | 0.95 |
Display | LED + LCD |
Protection degree | IP20 |
Interface | Standard equipment: double RS232 port with monitoring software CD, dry contacts, 2 interface intellislots |
ENVIRONMENT | |
Operating temperature | 0 ~ 40°C |
Storage temperature | -25 ~ 60°C |
Relative humidity | 0 ~ 95% (no condensing) |
Noise (dBA) | <54dB |
Altitude | <1000m; load derated 1% per 100m, from 1000 ~ 4000m |
MECHANICAL DATA | |
Cabinet dimensions W*D*H (mm) | 555*740*1400 |
Cabinet weight (Kg) | 200 |
Color | Standard: RAL 7035, light grey |
Compliance | European directive: 2014/35/EU Low voltage directive; and 2014/30/EU Electromagnetic compatibility directive |
GTEC電源LIBRA Pro系列介紹
LIBRA Pro 系列的功率范圍為 10 至 100 kVA 三相/單相和 10 至 800 kVA 三相/三相，采用雙轉換在線技術 (VFI) 和用于輸出電流隔離的逆變變壓器。
負載由具有濾波、穩定和調節的正弦波電源的逆變器持續供電。 輸入和輸出 EMI 濾波器大大提高了負載對電源干擾和浪涌的抗擾度，使 LIBRA Pro 成為可靠性極高的系統，非常適合安全或工業應用。
主要特點
? 可靠、過濾、穩定和調節的正弦波輸出：雙轉換在線技術 VFI 符合 EN50091-3 規范，帶有用于抑制大氣干擾的濾波器
? 高可靠性：IGBT 技術、不間斷的全微處理器控制——靜態和手動轉換、高短路電流（高達 3 x I 標稱值）以確保與困難的應用（照明、驅動和工業過程）兼容，以及逆變器輸出端的隔離變壓器
? 對供電網絡的影響?。簩τ?LIBRA Pro IGBT 型號 100-800 kVA，輸入電流失真小于 3%。 這減少了共振問題、網絡干擾以及設計成本
? 高級診斷：事件日志、狀態、測量和警報都可以通過內置 LCD 以多種語言顯示
? 可選功率步入式允許限制輸入浪涌電流
? 高可靠性和電源可用性歸功于并聯配置，最多 8 個單元
? EPO（緊急關機）：允許使用遠程緊急按鈕關閉 UPS
? 正面訪問
? 智能電池系統適用于最常見的電池類型，如密封電池、濕電池和鎳鎘電池
? 標配反向饋電保護
LIBRA Pro series is available with a power range from 10 to 100 kVA threephase/singlephase and 10 to 800 kVA threephase/threephase, using double conversion on-line technology (VFI) with an inverter transformer for output galvanic isolation.
The load is continuously powered by the inverter with a filtered, stabilised and regulated sinewave supply. The input and output EMI filters considerably increase the immunity of the load to mains disturbances and surges, making LIBRA Pro an very high reliability system, perfectly suitable for security or industrial applications.
Main features
? Reliable, filtered, stabilised and regulated sinewave output: double conversion online technology VFI according to EN50091-3 specifications with filters for atmospheric disturbance suppression
? High reliability: IGBT technology, full microprocessor control with no break – in static and manual transferring, high short-circuit current (up to 3 x I nominal) to ensure compatibility with the most difficult application (lighting, drives and industrial processes) and an isolating transformer on the inverter output
? Low impact on the supply network: the input current distorsion is less than 3% for LIBRA Pro IGBT model 100-800 kVA. That reduces resonance problems, network disturbs, as well as design costs
? High level diagnostics: event log, states, measurements and alarms are all available from the built-in LCD, in several languages
? Selectable power walk-in allows to limit the input rushing current
? Maximum reliability and power availability thanks to parallel configuration, up to 8 units
? EPO (Emergency Power Off): allows UPS shut-down using remote emergency button
? Front access
? Smart battery system suitable for use with most common battery types such as Sealed, Wet and Ni-Cd
? Back-feed protection fitted as standard
GTEC電源LIBRA Pro系列其他常用型號：
GTEC LB010MP
GTEC LB015MP
GTEC LB020MP
GTEC LB030MP
GTEC LB040MP
GTEC LB060MP
GTEC LB080MP
GTEC LB100MP
GTEC LB010TP
GTEC LB015TP
GTEC LB020TP
GTEC LB030TP
GTEC LB040TP
GTEC LB060TP
GTEC LB080TP
GTEC LB100TP
GTEC LB120TP
GTEC LB160TP
GTEC LB200TP
