SQUARE-D限位開關9007C54B2技術參數
Specifications | |
Main | |
Range of Product | 9007 |
series name | Heavy duty |
Product or Component Type | Limit switch |
Product Specific Application | Standard box |
device short name | 9007C |
body type | Plug-in |
head type | Rotary head |
Material | Metal |
Fixing Mode | By the body |
movement of operating head | Rotary |
type of operator | Zinc spring return without operating lever -)9007C lever |
switch actuation | CW and CCW |
type of approach | Lateral approach, 1 or 2 programmable direction |
electrical connection | Screw-clamp terminals AWG 22...AWG 12), 1…2 |
cable entry | 1 entry for 1/2" - 14 NPT ANSI B1.20.1 |
number of poles | 1 |
contacts type and composition | NC-NO |
contact operation | Snap action |
positive opening | Without |
sale per indivisible quantity | 1 |

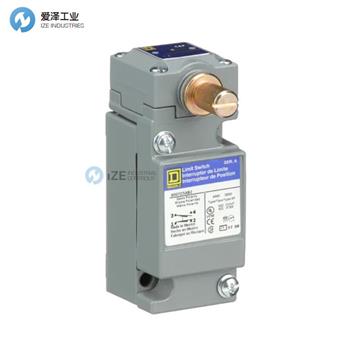

SQUARE-D限位開關9007C54B2產品介紹
Description
This product is part of the Nema Limit Switches range, an offer of heavy duty metal limit switches. The limit switch is a device that converts a mechanical motion into an electrical control signal. It has 1 normally closed + 1 normally opened, SPDT-DB (single pole double throw, double break) form Z, snap action contacts. The zinc spring return mechanism without operating lever supports a lateral approach, 1 or 2 directions programmable and switch actuation in CW and CCW position, from left and right. It is furnished with screw clamp terminals for electrical connection. It offers mechanical durability of about 10 million operating cycles and electrical durability of about 1 million operating cycles. It is a safety switch with a rated operating current of 1.2A at 600V AC, 0.1A at 600V DC and conventional enclosed thermal current of 10A. It is an IP67 and NEMA 1/2/4/6/6P/12/13 rated product. This NEMA limit switch has plug-in body made of metal. Its dimensions are 39.37mm (width) x 63.5mm (depth) x 102.11mm (height) and weighs 0.57kg. It is suitable for use in process machinery applications such as machine tools, plastic, rubber and moulding, printing, textile, pulp, paper and wood. This product is certified by UL, CSA and CE. It complies with UL 508, NEMA 250, IEC 60947, EN 60947-5-1, EN 60947-1 and C22-2-14-95 standards. Compact and standard, 39mm plug-in body for hazardous locations. Compliant with US and international standards, the 9007 series limit switches can withstand the impact of heavy industry. This constitutes a comprehensive range of limit switches rigged and dependable built with unparalleled quality.
描述
該產品是 Nema 限位開關系列的一部分，該系列提供重型金屬限位開關。限位開關是將機械運動轉換為電氣控制信號的裝置。它有1個常閉+1個常開，SPDT-DB（單刀雙擲，雙斷）Z形，速動觸點。沒有操作桿的鋅彈簧復位機構支持橫向接近、1 或 2 個方向可編程和 CW 和 CCW 位置的開關驅動，從左側和右側。它配有用于電氣連接的螺釘夾端子。它提供約 1000 萬次操作循環的機械耐用性和約 100 萬次操作循環的電氣耐用性。它是一種安全開關，額定工作電流在 600V AC 時為 1.2A，在 600V DC 時額定工作電流為 0.1A，常規封閉熱電流為 10A。它是 IP67 和 NEMA 1/2/4/6/6P/12/13 級產品。該 NEMA 限位開關具有金屬制成的插入式主體。其尺寸為 39.37 毫米（寬）x 63.5 毫米（深）x 102.11 毫米（高），重量為 0.57 公斤。它適用于加工機械應用，例如機床、塑料、橡膠和模具、印刷、紡織、紙漿、紙張和木材。本產品通過 UL、CSA 和 CE 認證。它符合 UL 508、NEMA 250、IEC 60947、EN 60947-5-1、EN 60947-1 和 C22-2-14-95 標準。緊湊和標準的 39 毫米插入式機身，適用于危險場所。 9007 系列限位開關符合美國和國際標準，可承受重工業的沖擊。這構成了一系列全面的限位開關，這些限位開關裝配可靠，具有無與倫比的質量。
SQUARE-D限位開關其他常用型號：
SQUARE-D 9007C54B2
SQUARE-D 9007C62A2
SQUARE-D Pressure Switch NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于SQUARE-D限位開關9007C54B2的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for SQUARE-D products, please feel free to dial 0086-21-3100 6702/ send request email to sales@www.agcjj.cn / browse our website:www.www.agcjj.cn.
