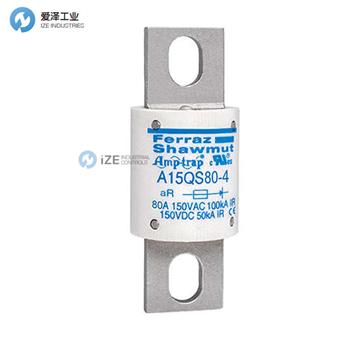

MERSEN熔斷器A15QS80-4技術參數
Item Number | A15QS80-4 |
Item Description (ERP) | SC FUSE 150V 80A QS BLADE |
Short Description | Semiconductor Fuse Amp-Trap? 150V 80A aR High Speed A15QS |
EAN/UPC Code | 782001288242 |
Rated voltage AC UL | 150 V |
Rated voltage DC UL | 150 V |
Ampere Rating | 80 A |
ROHS Compliant | Yes |
Speed/Characteristic | High Speed |
Mounting | Bolted |
AC Max I.R./Breaking Capacity: I1 | 200 kA |
Connection/Terminal Material | Tin-Plated Brass |
Connection/Terminal Type | Blade |
Body/Insulating Material | GMG |
Product Weight | 0.17 lb |
Product Diameter | 1.13 in |
Product Length | 2.66 in |
MERSEN熔斷器A15QS系列介紹
A15QS Amp-Trap? Form 101熔斷器設計用于對額定電壓為 150VAC/DC 的二極管和其他半導體器件進行特定保護。A15QS 產品線的緊湊設計非常適合那些可用空間有限的應用。
? 低 I2t 可大限度地減少短路時對受保護組件的損壞
? 受控電弧電壓可減少熔斷器熔斷期間對電路組件的壓力
? 安裝類型的選擇為獨特的端接要求提供了選項
A15QS Amp-Trap? Form 101 high speed fuses were designed for the specific protection of diodes and other semiconductor devices rated 150VAC/DC. The A15QS product line’s compact design is perfect for those applications that have limitations on available space.
? Low I2t minimizes damage to protected components on short circuit
? Controlled arc voltage reduces stress to circuit components during fuse clearing
? Choice of mounting types provides options for unique termination requirements

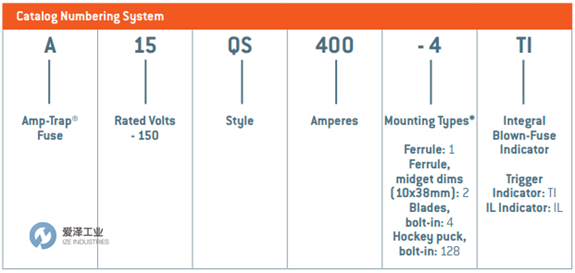

MERSEN熔斷器A15QS系列選型
MERSEN熔斷器A15QS系列其他常用型號：
MERSEN A15QS4-2
MERSEN A15QS5-2
MERSEN A15QS6-2
MERSEN A15QS7-2
MERSEN A15QS10-2
MERSEN A15QS12-2
MERSEN A15QS15-2
MERSEN A15QS20-2
MERSEN A15QS25-2
MERSEN A15QS50-4
MERSEN A15QS60-1
MERSEN A15QS70-4
MERSEN A15QS70-4TI
MERSEN A15QS80-4
MERSEN A15QS80-4Tl
MERSEN A15QS90-4
MERSEN A15QS100-4
MERSEN A15QS100-4T1
MERSEN A15QS130-4
MERSEN A15QS130-4TI
MERSEN A15QS150-4
