AES旋轉警報器RS-ETS60-109-AL-12-A技術參數
ITEM CODE | RS-ETS-60-AL-12-A |
POWER SUPPLY V | 12V AC DC |
WORKING CURRENT A | 10,6 |
FREQUENCY Hz | 50/60 |
POWER CONSUMPTION W | 127 |
ACOUSTIC FREQUENCY Hz | 1150 |
SOUND OUTPUT dB@1m | 107 |
WEIGHT KG | 2,8 |
AES旋轉警報器RS-ETS60-109-AL-12-A產品介紹
RS-ETS60-109 系列旋轉警報器用于具有潛在爆炸可能的環境，例如化工廠、煉油廠、泵站以及可能存在灰塵的地方，例如存儲筒倉。標準版本由低銅含量的鋁合金制成，帶有ABS鍍鉻葉輪蓋，由AISI 316L不銹鋼保持架保護。聲學信號具有在短時間內達到峰值的線性聲音。警報器適用于短期警告，不適用于持續服務。它們配備了一個熱傳感器，當電機內部的溫度達到極限時，該傳感器就會啟動。
The RS-ETS60-109 series rotary sirens are used in environments with potentially explosive surfaces such as chemical plants, oil refineries, pump stations, and places where dusts could be presents such as storage silos. The standard version is composed of a body made in Aluminum alloy with a low copper content with an ABS chromed cover impeller cap protected by a cage in AISI 316L stainless steel. The acoustic signal has a linear sound that reaches its peak in a short period of time. The sirens are suitable for short-term warnings and not for continuous service. They are equipped with a thermal sensor that activates when the temperature inside the motor reaches its limit.

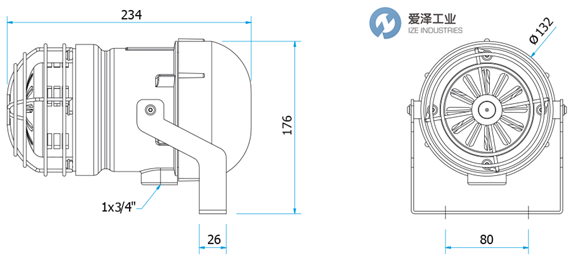

AES聲音警告裝置RS-ETS60-109系列技術尺寸
AES聲音警告裝置RS-ETS60-109系列其他常用型號：
AES RS-ETS-60-AL-12-A
AES RS-ETS-60-AL-22-A
AES RS-ETS-60-AL-32-A
AES RS-ETS-60-AL-52-A
AES RS-ETS-60-AL-62-A
AES Rotary sirens NEW + ORIGINAL+ ONE YEAR WARRANTY
