HONEYWELL限位開關GLA系列技術參數
Characteristic | Parameter |
Description | EN50041 industrial grade limit switch, standard body or plug-in body with 30 mm x 60 mm mounting |
Certifications | CE, CCC, CSA, UL |
Conforming to standards | IEC/EN 60947-5-1. EN45545 -2 (GL A/GLF Series) |
Housing material | Electrostatic epoxy coated zinc |
Actuators | Side rotary, top pin plunger, top adjustable plunger, top roller plunger, top roller lever, |
Termination | 0.5-14 NPT; PG 13,5; M20; G 1/2 (PF 1/2); Deutsch style 4 pin connector; Micro-change connector; |
Contact options | 1NC/1NO, 2NC, 2NO, 2NC/2NO, 2NC/2NO sequential, 2NC/2NO center neutral |
Contact type | Snap action, slow action break- before-make (BBM)，slow action make-before- break (MBB), slow action |
Contact material | Silver alloy (standard), gold- plated (low- energy applications) |
Utilization category | ac15, A300/A600; dc13, Q300 |
Rated operational voltage (Ue) | 240 Vac, 600 Vac, 250 Vdc |
Rated operational current (le) | 3A, 1.2A,0.27 A |
Thermal current (Ith) | 10A,2.5A |
Rated insulation voltage (Ui) | 300 V; 600 V |
Rated impulse withstand voltage (Uimp) | 2500 V |
Short circuit protective device (SCPD), type, and rating | Class J fuse, rated 10A, 600V |
Pollution degree | 3 |
Sealing | IP67; NEMA/UL 1, 4, 12, and 13 |
Operating temperature | -40 oC to 85 °C [-40 °C to 185 °F] side rotary actuator |
Mechanical life | Up to 15 million operations |
Vibration (actuator not fitted) | 10 g conforming to IEC 68-2-6 |
Shock (actuator not fitted) | 50 g conforming to IEC 68-2-27 |
Options | Standard limit switch with 1 L ED pilot light (GLF Series) or 2 LED pilot lights (GLH Series) in front cover |
HONEYWELL限位開關GLA系列介紹

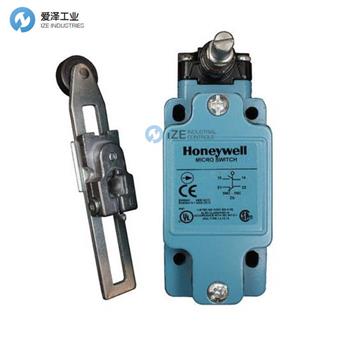

霍尼韋爾的 MICRO SWITCH GLA 限位開關系列設計符合全球 EN50041 標準，非常適合全球應用。 限位開關的模塊化設計（頭部/執行器、主體和觸點塊）允許快速響應以滿足客戶應用。 開關堅固的壓鑄金屬外殼非常適合需要一定程度的 IP 或 NEMA 外殼密封的室內和室外應用。 常閉速動觸點和常閉慢動觸點是正向斷開。
Honeywell’s MICRO SWITCH GLA Limit Switch Series is designed to global EN50041 standards and well suited for worldwide applications. The modular design (heads/actuators, bodies, and contact blocks) of the limit switch allows for rapid response to meet customer applications. The rugged die-cast metal housing of the switch is ideal for indoor and outdoor applications where a degree of IP or NEMA enclosure sealing is required. Normally closed snap-action contacts and normally closed slow-action contacts are positive opening .

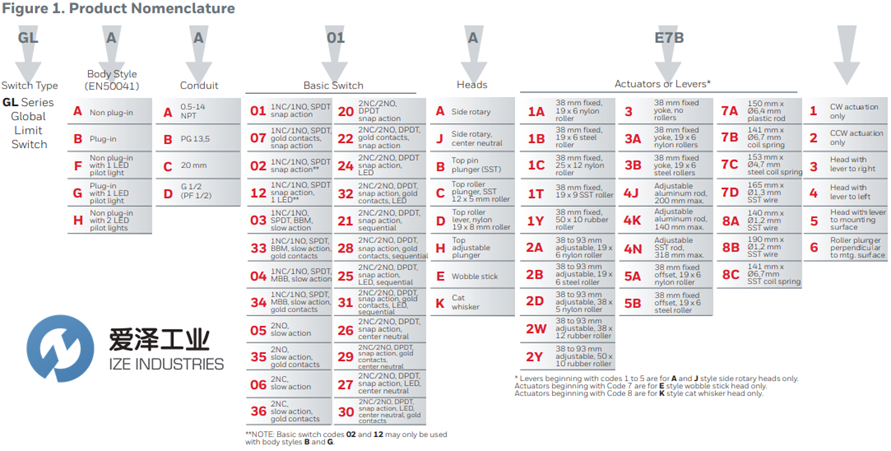

HONEYWELL限位開關GLA系列選型
HONEYWELL限位開關GLA系列其他常用型號：
HONEYWELL GLAA01A2A
HONEYWELL GLAA07A2A
HONEYWELL GLAA06A2A
HONEYWELL GLAA20A2A
HONEYWELL GLAA22A2A
HONEYWELL GLAA26J2A
HONEYWELL GLAA01A2B
HONEYWELL GLAA07A2B
HONEYWELL GLAAO3A2B
HONEYWELL Limit Switches NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于HONEYWELL限位開關GLAA20A2A的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for HONEYWELL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@www.agcjj.cn / browse our website:www.www.agcjj.cn.
HONEYWELL限位開關GLA系列GLAA20A2A技術參數及選型
