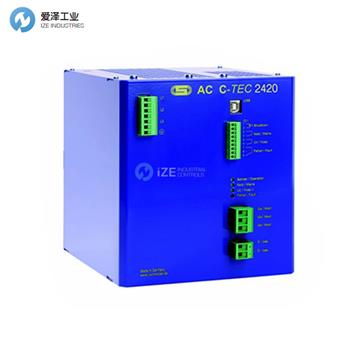

J.SCHNEIDER電源AC C-TEC2420-8技術參數
Designation | AC C-TEC 2420-8 |
Input voltage range | 4001 500 VAC |
Output voltage in mains operation | 24.0V DC +0.5% |
Output voltage in buffer mode | 24 DC |
Rated current | 20.0A |
Bridge time | 344 seconds at 1 A load |
Interfaces | USB for programming and communication with the PC |
Shutdown software | Optional TEC-Control |
Parameterization software | Optional ParaTEC |
Dimensions | 192.5 x 170 x 198 mm (H x W x D) |
Total weight | 3.5 kg |
J.SCHNEIDER電源AC C-TEC 2410-10 系列介紹
AC C-TEC 2410-10 系列直流不間斷電源（DC UPS）內部配備超容器作為能量存儲裝置。在正常運行時，電容器由內部充電器充電，充電器由內部穩壓的交流-直流（AC-DC）電源供電。如果交流電源中斷，超容器中的能量會以受控方式釋放（23.5V直流電，允許±5%）。在超容器放電期間，負載由緩沖模塊供電，直到超容器放完電為止。緩沖時間取決于電容器的充電水平和放電電流。該DC UPS的主要特點包括：
由于超容器的長壽命，實現免維護
能量存儲系統的集成簡化了接線工作
支持微控制器的超容器充放電管理
通過無潛位觸點和LED實現電網監控
采用彈簧夾技術，抗振動接線
適應-40°C至60°C的寬溫工作范圍
The AC C-TEC 2410-10 series DC UPS has ultracapacitors inside its housing as energy storage devices. During normal operation, the capacitors are charged by an internal charger, which is powered by an internal regulated AC-DC power supply. If the AC power supply is interrupted, the energy from the ultracapacitors is released in a controlled manner (23.5 V DC + 5%). The load is supplied by the buffer module until the ultracapacitors are discharged. The buffer time depends on the capacitors' charge level and the discharge current. The DC UPS is characterized by the following features:
Maintenance-free thanks to long-life ultracapacitors
Limited wiring effort thanks to the integration of the energy storage system
Microcontroller-supported charging and discharging of the ultracapacitors
Grid monitoring via potential-free contact and LED
Vibration-proof wiring thanks to spring-loaded technology
Wide temperature range from -40°C to 60°C
J.SCHNEIDER電源其他常用型號：
J.SCHNEIDER AC C-TEC2420-8
J.SCHNEIDER AC C-TEC 2420 + CEM 24-8
J.SCHNEIDER AC C-TEC 2403 1,5 kJ + CEM 24-2
J.SCHNEIDER AC C-TEC 2403 0,5 kJ + CEM 24-1
J.SCHNEIDER AC C-TEC 2420 + CEM 24-16
J.SCHNEIDER AC C-TEC 2403 0,5 kJ + CEM 24-1
J.SCHNEIDER AC C-TEC 2403 1,5 kJ + CEM 24-1
J.SCHNEIDER AC C-TEC 2403 1,5 kJ + CEM 24-1
J.SCHNEIDER AC C-TEC 2403 0,5 kJ + CEM 24-2
J.SCHNEIDER AC C-TEC 2403 0,5 kJ + CEM 24-2
J.SCHNEIDER AC C-TEC 2403 1,5 kJ + CEM 24-2
