ALBRIGHT接觸器SW80AB-2180技術參數
Specifications | |
Device Type | SW80B SPST NO |
Voltage | 24V D.C. |
Coil Type | Continuous |
Amps | 100 amp |
Coil Resistance (Ohms) | 52 |
Pull-In Voltage (V) | 16.0 Maximum |
Drop Out Voltage (V) | 6.0 Maximum |
Coil Power Dissipation (W) | 11.08 |
Typical Pull-In Time | 20ms |
Typical Voltage Drop Per Pole Across New Contacts At 100A | 40mV |
Operating Ambient Temperature | -40 to +60℃ |
Weight | 420g |
ALBRIGHT接觸器SW80AB-2180介紹
The SW80 has been designed for direct current loads, including motors as used on electric vehicles such as industrial trucks, and telecom and power distribution applications. Developed for both interrupted and uninterrupted loads, the SW80 is suitable for switching Resistive, Capacitive and Inductive loads.

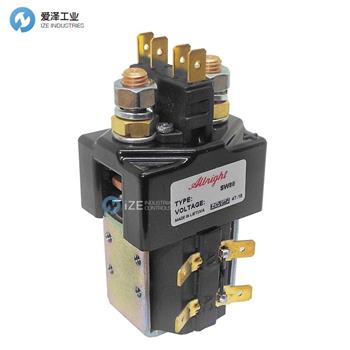

The SW80 features single pole double breaking main contacts with silver alloy tips, which are weld resistant, hard wearing and have excellent conductivity. The SW80 has M8 stud main terminals and 6.3mm spade coil connections. Mounting is via M4 tapped holes or mounting brackets, either supplied fitted, or as separate items. Mounting can be horizontal or vertical, when vertical the M8 contact studs should point upwards.
SW80專為直流負載而設計，包括用于電動車輛（如工業卡車）以及電信和配電應用的電機。SW80為間斷和不間斷負載開發，適用于開關電阻、電容和電感負載。
SW80具有單極雙斷主觸點，帶有銀合金尖端，具有抗焊性、耐磨性和出色的導電性。 SW80 具有M8螺柱主端子和6.3mm鏟形線圈連接。安裝是通過 M4螺紋孔或安裝支架進行的，無論是隨附提供的，還是作為單獨的項目。安裝可以是水平的或垂直的，垂直時M8接觸螺柱應朝上。
