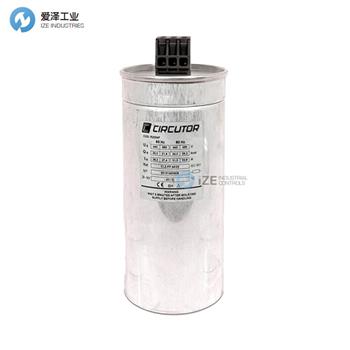

CIRCUTOR電容R2H64N CLZ-FP-44/30-60Hz-HD技術參數
SPECIFICATIONS | |
AC POWER SUPPLY | |
Frequency | 60 Hz |
ELECTRICAL CHARACTERISTICS | |
Losses (W) | Dielectric: < 0,2 W / kvar Total: < 0,4 W / kvar |
Discharge resistance | 50 V / 1 min (0,5 - 30 kvar) 75 V / 3 min (33 - 50 kvar) |
Surge | 10 % 8h in 24 h 15 % up to 30 min in 24 hours 20 % up to 5 min in 24 hours 30 % up to 1 min in 24 hours |
Tolerance C | -5 … +10 % |
Maximum phase current | 400 x In |
Voltage | 440 V |
Insulation voltage, circuit | 3 / 8 kV |
MECHANICAL CHARACTERISTICS | |
Size (mm) width x height x depth | 116 x 280 x 116 (mm) |
Screw type | M5 x 12 / PH2 |
Envelope | Aluminum |
Torque setting | 2 ... 2,5 Nm / Earth: 5 Nm máx. |
Cable gauge at input and output terminals | 25mm2 |
Fastening | M12 fastening screws earth conductor |
Ventilation | Natural or forced depending on the cabinet |
Weight (kg) | 1,78 |
ENVIRONMENTAL CHARACTERISTICS | |
Protection class | IP 20 / IP 54 with terminal cover (optional) (for models ? 85, 100, 116 mm) |
Relative humidity (without condensation) | 95% |
Installation, location, position. | Vertical / Horizontal. Minimum distance between condensers 2 cm. |
Working temperature | Ta class D: Daily average: 45 oC, annual average: 35 oC, maximum: 65 oC, minimum: -50 oC |
STANDARDS | |
Certifications | VDE 560 |
Electrical safety, Maximum height (m) | 4000 |
Standards | IEC 60831-1-1/2 |
CURRENT MEASUREMENT CIRCUIT | |
Allowable overload | 1,8 In |
Permanent overload | 1,8 In |
PROTECTION | |
Circuit breaker type | Dielectric regeneration Expansion system |
CIRCUTOR電容CLZ-HD系列介紹
DESCRIPTION
CLZ-HD (Heavy duty) capacitor range is composed of capacitors with a tubular casing, of the dry-type, covering a wide range of power and voltage ratings, at 50 and 60 Hz. The CLZ-HD capacitors are designed to be installed in installations with extreme working conditions. The design, manufacturing and testing processes guarantee the production of top quality and long lasting capacitors. Those CLZ-HD capacitors offer a new refrigeration technology by means of nitrogen gas*, being a refrigerating system of high benefits, inert and non flammable.
APPLICATIONS
Its application is based on compensation in installations with static or variable loads (capacitor banks). Especially designed to be installed in roughly environments with the most extreme conditions due to its longer life and high temperature resistance.
描述
CLZ-HD（重載）電容器系列由具有管狀外殼的干式電容器組成，涵蓋50和60 Hz時的各種功率和電壓額定值。CLZ-HD 電容器設計用于安裝在極端工作條件下的裝置中。設計、制造和測試流程保證了生產出高質量和持久耐用的電容器。這些CLZ-HD電容器通過氮氣提供了一種新的制冷技術，是一種高效益、惰性且不易燃的制冷系統。
應用領域
其應用基于靜態或可變負載（電容器組）裝置中的補償。由于其更長的使用壽命和耐高溫性，專門設計用于安裝在最極端條件的惡劣環境中。
CIRCUTOR電容CLZ-HD系列其他常用型號：
CIRCUTOR CLZ-FPT-44/3-HD
CIRCUTOR CLZ-FPT-44/3,75-HD
CIRCUTOR CLZ-FPT-44/5-HD
CIRCUTOR CLZ-FPT-44/6,25-HD
CIRCUTOR CLZ-FPT-44/7,5-HD
CIRCUTOR CLZ-FP-44/10-HD
CIRCUTOR CLZ-FP-44/12,5-HD
CIRCUTOR CLZ-FP-44/15-HD
CIRCUTOR CLZ-FP-44/18,2-HD
CIRCUTOR CLZ-FP-44/20-HD
CIRCUTOR CLZ-FP-44/30-60Hz-HD
CIRCUTORT capacitor NEW + ORIGINAL+ ONE YEAR WARRANTY
