ATO限位開關ATO-HTLS-XWKB技術參數
Specification | |
Model | ATO-HTLS-XWKB |
Weight | 258g |
Adjustable radius of roller lever | 25-89mm |
Rated voltage | 220VAC (Customizable rated voltage is shown in the reference table below.) |
Rated current | 5A (Customizable rated current is shown in the reference table below.) |
Contact type | 1NO+1NC (NC pin: 1 & 2, NO pin: 3 & 4) |
Operating speed | 1mm/s~2m/s |
Operating frequency | Machinery: 120 times/minute |
Contact resistance | ＜15MΩ, initial stage |
Insulation resistance | ＞100MΩ (＜500VDC) |
Withstand voltage | Between no-connection terminals: 1000VAC, 50/60Hz lasts 1 minute |
Vibration | Misoperation endurance: 10~55Hz, 1.5mm, double-amplitude |
Bottom terminal thread size | M20*1.5mm |
Impact | Mechanical endurance: ＞1000m/s2 (＞100G) |
Shell material | Cast aluminum alloy |
Temperature | -10~+350℃ (14~622℉) |
Humidity | ＜95%RH |
Working life | Machinery: ＞15million times |
Protection class | IP66 |
ATO限位開關ATO-HTLS-XWKB產品介紹
高溫限位開關采用全封閉的1NO + 1NC觸點開關，可在環境溫度為350℃（622℉）時使用。其滾輪杠桿的半徑可調節范圍為25-89毫米，以滿足更多場合的需求?？烧{(diào)滾輪杠桿限位開關還具有自動復位功能。默認額定電流和電壓為5A/220VAC，其他值（AC 120V/380V，DC 12V/24V/48V）可定制。

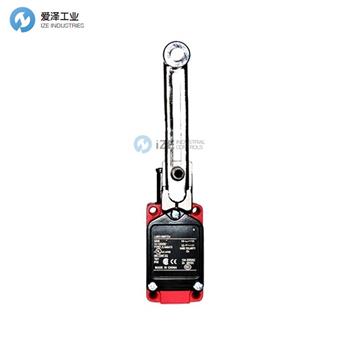

High temperature limit switch adopts fully enclosed 1NO + 1NC contact switches, can be used in the environment temperature 350℃ (622℉). Its roller lever has the adjustable radius of 25-89mm to meet the needs of more occasions. Adjustable roller lever limit switch also has automatic reset function. The default rated current and voltage is 5A/220VAC, and other values (AC 120V/380V, DC 12V/24V/48V)can be customizable.
ATO限位開關其他常用型號有：
ATO ATO-HTLS-XWKB
ATO ATO-HTLS-RL
ATO ATO-HTLS-ARL
ATO ATO-HTLS-RP
ATO ATO-HTLS-TP
ATO ATO-HTLS-CS
ATO ATO-HTLS-ARDL
ATO ATO-HTLS-FL
