GIGAVAC繼電器G41A系列產品參數
SPECIFICATIONS | ||
Contact & Relay Ratings | Units | G41 |
Contact Form | A | |
Contact Arrangement | SPST-NO | |
Voltage, Test Max., Contacts & to | kV Peak | 6 |
Base (15 μA Leakage Max., dc or 60Hz) | ||
Voltage, Operating Max., Contacts & to Base (15 μA Leakage Max.) | ||
dc or 60 Hz | kV Peak | 5 |
2.5 MHz | kV Peak | 4.5 |
16 MHz | kV Peak | 3.5 |
32 MHz | kV Peak | 2.8 |
Current, Continuous Carry Max | ||
dc or 60 Hz | Amps | 30 |
2.5 MHz | Amps | 24 |
16 MHz | Amps | 16 |
32 MHz | Amps | 12 |
Coil Hi-Pot (V RMS, 60 Hz) | V | 500 |
Capacitance | ||
Across Open Contacts | pF | 1.2 |
Contacts to Ground | pF | 1.2 |
Resistance, Contact Max @ 1A, 28 Vdc | ohms | 0.02 |
Operate Time | ms | 10 |
Release Time | ms | 10 |
Life, Mechanical | cycles | 2 million |
Weight, Nominal | g (oz) | 28 (1) |
Vibration, Operating, Sine (55-2000 Hz Peak) | G’s | 10 |
Shock, Operating, 1/2 Sine11ms (Peak) | G’s | 50 |
Temperature Ambient Operating | °C | -55 to +125 |
GIGAVAC繼電器G41A系列產品介紹
高效的射頻設計以小封裝提供高功率處理
鎢觸點改善了熱負荷切換
聯系GIGAVAC應用支持以獲取負載能力
可以安裝在任何位置，任何軸上
達到或超過MIL-R-83725中設定的標準
RF ef?cient design offers high power handling in a small package
Tungsten contacts improve hot load switching
Contact GIGAVAC Applications Support for load capability
Can be mounted in any position, any axis
Meets or exceeds standards set in MIL-R-83725

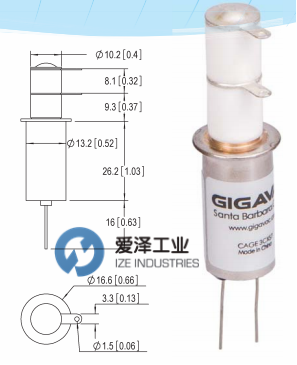

外觀尺寸

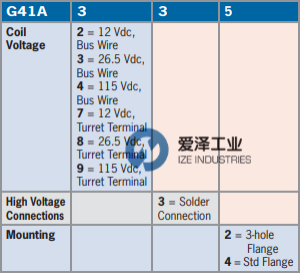

選型參考
GIGAVAC繼電器G41A系列其他常見型號：
GIGAVAC G41A235
GIGAVAC G41A335
GIGAVAC G41A435
GIGAVAC G41A735
GIGAVAC G41A835
GIGAVAC G41A935
GIGAVAC High Voltage Relays NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于GIGAVAC繼電器G41A334的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for GIGAVAC products, please feel free to dial 0086-21-3100 6702/ send request email to sales@www.agcjj.cn / browse our website: .

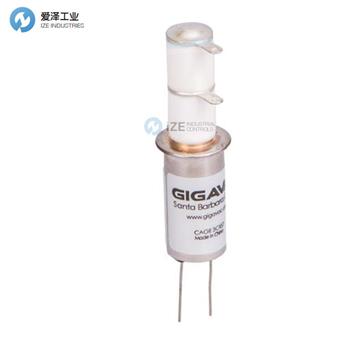

GIGAVAC繼電器G41A系列G41A334介紹
