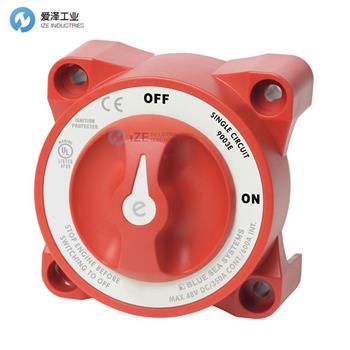

BLUE SEA SYSTEM選擇開關電池9003E產品參數
Specifications | |
Switch Type | Single Circuit ON-OFF |
Color | Red |
Switch Positions | 2 |
Battery Combine | No |
Alternator Field Disconnect | No |
Maximum Voltage | 48V DC |
Terminal Stud Torque | 140 in-lb (15.82 Nm) |
Continuous Rating | 350A |
Intermittent Rating | 600A (5 min) |
Cranking Rating 30 sec | 1200A |
Battery Inputs | 1 |
Cable Clearance For 4/0 AWG Cables | 1.10in (27.94 mm) |
Cable Size to Meet Ratings | 4/0 AWG (120mm2) |
Mounting Holes | Accept 1/4" (M6) Screw |
Stud Material | Tinned Copper |
Terminal Stud Size | 3/8" - 16 (M10) |
Weight | 1.30lb (0.59 kg) |
BLUE SEA SYSTEM選擇開關電池9003E產品介紹
鍍錫銅螺柱可提供最大的導電性和耐腐蝕性
接受最多4/0 AWG電池電纜
螺柱接受3/8“（M10）環形端子
7/8英寸（22毫米）螺柱長度可容納多個電纜端子
Blue Sea Systems一件式接線柱設計不會隨著時間的流逝而松動
適合大多數Perko和Guest低安培電池開關孔樣式
外殼設計允許表面，背面或前面板安裝選項
觸覺指示器通過觸感傳達旋鈕位置
防水-投射在強力噴氣機上的水可達到IP66防護等級
Tin-plated copper studs for maximum conductivity and corrosion resistance
Accepts up to 4/0 AWG battery cables
Studs accepts 3/8" (M10) ring terminals
7/8" (22mm) stud length accepts multiple cable terminals
Blue Sea Systems one-piece terminal stud design never loosens over time
Fits most Perko and Guest low amperage battery switch hole patterns
Case design allows surface, rear, or front panel mounting options
Tactile indicator conveys knob position by feel
Waterproof – rated IP66 from water projected in powerful jets
BLUE SEA SYSTEM選擇開關電池E系列其他常見型號：
BLUE SEA SYSTEM 11001
BLUE SEA SYSTEM 5510E
BLUE SEA SYSTEM 5511E
BLUE SEA SYSTEM 9001E
BLUE SEA SYSTEM 9002E
BLUE SEA SYSTEM 9003E
BLUE SEA SYSTEM 9004E
