SMITT繼電器D8-UL系列描述
插入式工業電源繼電器，帶有8個轉換觸點。 標準配備LED指示燈和整流橋，用于AC/DC線圈電壓?？蛇x擇磁弧噴射，雙閉合/雙斷開觸點和增加的接觸間隙，以實現高分斷能力和長接觸壽命。
在切換高直流電壓/電感負載和低電流時經過驗證的可靠操作。無需外部固定夾，因為集成的“彈簧鎖”可在任何情況和安裝方向下將繼電器固定在插座中。
繼電器的結構和材料的選擇使D8-UL繼電器適合承受腐蝕性環境，低溫和高溫，沖擊和振動以及非常潮濕的環境。
緊湊的設計，多種選擇和多種插座選擇使D8-UL繼電器成為一種簡單靈活的解決方案。
Description

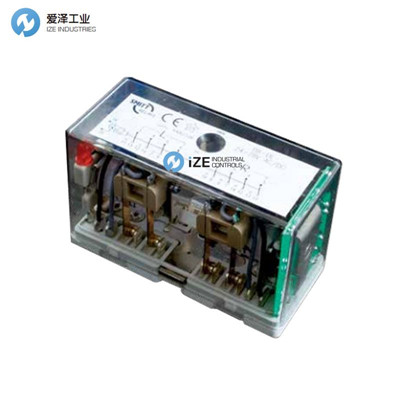

Plug-in industrial power relay with 8 change-over contacts. Standard equipped with a LED indicator and rectifier bridge for AC/DC coil voltage. Optionally magnetic arc-blowout, double make/double break contacts and increased contact gaps for high breaking capacity and long contact life
Proven reliable operation in switching high DC voltage / inductive loads and low currents. No external retaining clip needed as integrated ‘snap-lock’ will hold relay into socket under all circumstances and mounting directions.
The construction of the relay and choice of materials makes the D8-UL relay suitable to withstand corrosive atmospheres, low and high temperatures, shock & vibrating and dry to very humid environments.
Compact design, choice of many options and a wide range of sockets makes the D8-UL-relay an easy and flexible solution to use.
應用
堅固耐用的插入式繼電器，適用于惡劣環境下極其可靠、持久耐用的應用程序。這些繼電器系列專為要求苛刻的工業應用而設計，如電力設施和石化行業。
Application
Rugged plug-in relays for extreme reliable, long endurance applications in harsh environment. These relay series are designed for demanding industrial applications such as power utilities and petrochemical industries.

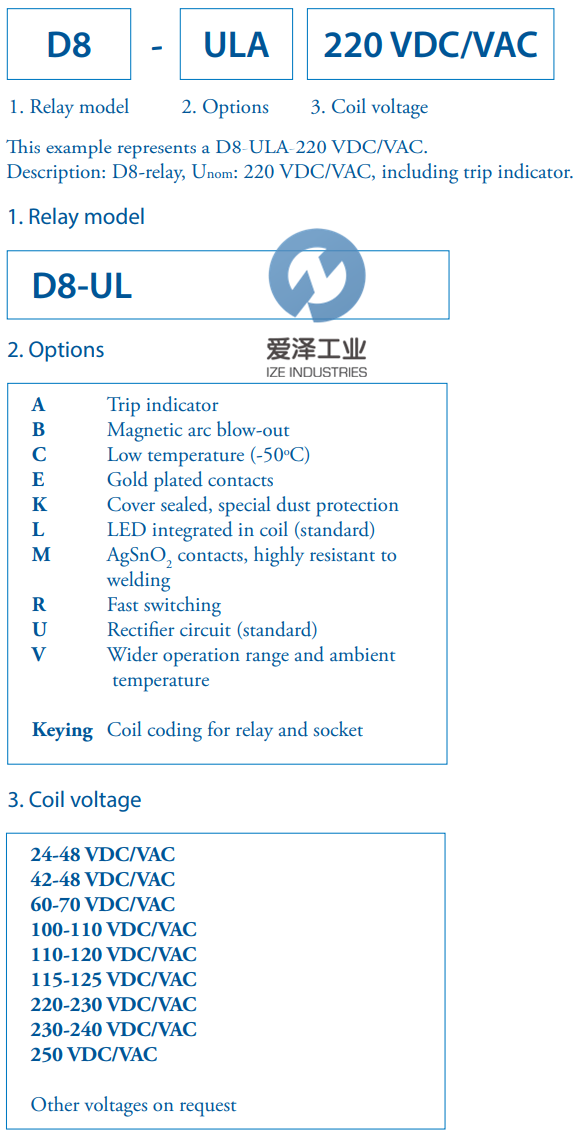

SMITT繼電器D8-UL系列選型參數
SMITT繼電器D8-ULB 100-110V AC/DC
愛澤工業(IZE INDUSTRIES)特價經銷、常用備件SMITT繼電器型號：
SMITT繼電器D8-ULB 100-110V AC/DC
SMITT繼電器D8-UL 24-28 VDC/VAC
SMITT繼電器D8-UL 42-48 VDC/VAC
SMITT繼電器D8-UL 60-70 VDC/VAC
SMITT繼電器D8-UL 100-110 VDC/VAC
SMITT繼電器D8-UL 110-120 VDC/VAC
SMITT繼電器D8-UL 115-125 VDC/VAC
SMITT繼電器D8-UL 220-230 VDC/VAC
SMITT繼電器D8-UL 230-240 VDC/VAC
SMITT繼電器D8-UL 250 VDC/VAC
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于SMITT繼電器D8-ULB的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
有關SMITT繼電器D8-ULB更詳細的信息或者購買荷蘭SMITT相關產品，請致電愛澤工業。
If you have any question, please feel free to dial 0086-21-3100 6702 or browse our website: www.www.agcjj.cn.
