ARCOTRONICS電容C87.8AF2產品參數
Specification | |
Type of Service | Continuous |
Operating Class | |
C87/8 | Class B 10,000 hours at 470 VAC, Class A 30,000 hours at 420 VAC |
C87/0 | Class B 10,000 hours at 420 VAC, Class C 3,000 hours at 470 VAC |
Temperature Range | ?25 to +85°C valid for all C87 Series |
Rated Voltage | 470 VAC |
Rated Frequency | 50 – 60 Hz |
Voltage Rise/Fall Time (Maximum) | 0 = 15 V/μs |
8 = 20 V/μs | |
Maximum Permissible Voltage | 1.10 x rated voltage |
Maximum Permissible Current | 1.30 x rated current |
Dissipation Factor (DF) | 20 x 10?4 at +20°C, 50 Hz |
Safety Class | S2 |
Maximum Altitude | 2,000 m |
Capacitance Tolerance | ±5% |
Mounting | Any position |
Case | Aluminium |
Disk | Thermoplastic Polymer V0 (UL 94) Plastic deck with: |
Filling Resin | Polyurethane |
Dielectric | Polypropylene |
Plates | Self-healing metal layer |
Test Voltage Terminal to Terminal (VTT) | 2 Vn for 2 seconds |
Test Voltage Terminal to Can (VTC) | 2,000 V for 2 seconds |
Total Harmonic Distortion | Up to 10% |
Fire Load | 40 MJ/kg |
Air Distance Between Live Parts | ≥ 5 mm |
Air Distance Between Live Parts and Case | ≥ 6 mm |
Vibration Test | IEC 68–2–6 |
Maximum Tightening Torque | 5 Nm (M8), 10 Nm (M12) |
ARCOTRONICS電容C87.8AF2產品介紹

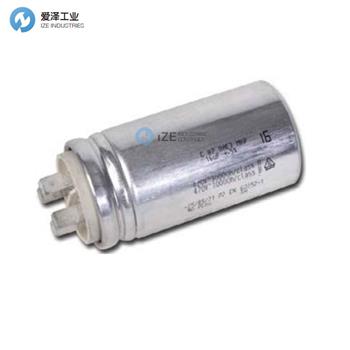

C87電容器是一種聚丙烯金屬化薄膜電容器，采用圓柱形，鋁罐式設計，填充樹脂。它使用faston、塑料甲板或電纜終端，以及超壓安全裝置。
The C87 capacitor is a polypropylene metallized film capacitor with a cylindrical, aluminium can-type design filled with resin. It uses faston, plastic deck or cable terminals, and an overpressure safety device.

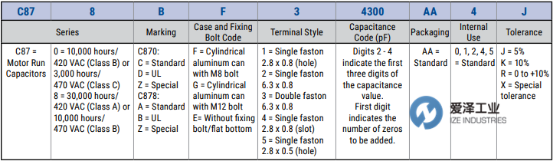

選型參考
ARCOTRONICS電容C87系列其他常用型號：
ARCOTRONICS C878AF24100AA5J
ARCOTRONICS C878AF24150AA4J
ARCOTRONICS C878AF24200AA4J
ARCOTRONICS C878AF24250AA4J
ARCOTRONICS C878AF24300AA4J
ARCOTRONICS C878AF24400AA4J
ARCOTRONICS C878AF24500AA4J
ARCOTRONICS C878AF24600AA0J
ARCOTRONICS C878AF24630AA2J
ARCOTRONICS C878AF24700AA0J
ARCOTRONICS C878AF24750AA0J
