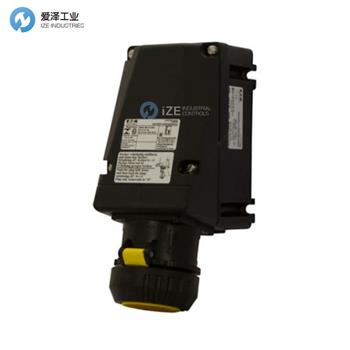

CEAG插座GHG系列技術參數
Technical data | |
Ex-plugs and receptacles, 21-pole | |
Marking accd. to 2014/34/EU | Ex II 2 G Ex e II T6 |
EC-Type Examination Certificate | PTB 00 ATEX 1109 |
Permissible ambient temperature | -20 °C to + 40 °C |
Rated voltage | 250 V AC |
Rated current | 10 A |
Frequency | up to 400 Hz |
External back up fuse | without therm. protection: 10 A |
Protection class | I |
Degree of protection accd. to EN 60529 | IP65 |
Enclosure colour | black |
Wall socket | |
Cable entry/enclosure drilling | 1 x M40 cable gland, 1 x M32 metal thread with plastic Ex-screw plug |
Connecting terminals | 1 x 1.0 - 2.5 mm2 |
Enclosure material | glass-fibre reinforced polyester |
Plug | |
Cable entry | ? 19 - 28 mm |
Connecting terminals | 1 x 1.0 - 2.5 mm2 crimp or solder connection |
Enclosure material | Polyamide |
CEAG防爆插頭和插座GHG系列其他常用型號：
CEAG GHG 511 4905 R0001
CEAG GHG 511 4905 R3001
CEAG GHG 591 2201 R0001
CEAG GHG 511 4906 R0001
CEAG GHG 511 4906 R3001
CEAG GHG 591 2201 R0002
CEAG GHG 511 4907 R0001
CEAG GHG 511 4907 R3001
CEAG GHG 591 2201 R0003
CEAG GHG 530 1935 R0008
CEAG GHG 610 1953 R0128
CEAG GHG 610 1953 R0128
CEAG GHG 610 1953 R0132
CEAG GHG 590 1301 R0102
CEAG GHG 590 1302 R0102
CEAG GHG 590 1902 R0001
CEAG GHG 590 1903 R0001
CEAG EX-PLUGS AND RECEPTACLES NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于CEAG插座GHG5114906R3001的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for CEAG products, please feel free to dial 0086-21-3100 6702/ send request email to sales@www.agcjj.cn / browse our website:www.www.agcjj.cn.
CEAG插座GHG系列GHG5114906R3001技術參數
