TASKER同軸電纜RG58 PUR技術參數
Conductor Resistance | 40 ?/Km |
Capacity Core/Shield | 100 pF/m |
Velocity of Propagation | 66% |
Signal Delay | 5,00 ns/m |
Impedance | 50 ? |
Min. Bending Radius for single bend | 5xouter ? |
Min. Bending Radius for Multiple bend | 10xouter ? |
Insulation Resistance | 10? M?m |
Min. Screening effectivness | >57 dB |
Max Rated Voltage | 2 KV |
Test Voltage | 5 KV |
Weight | 3,5 kg/100m |
Recommended connector | tasker SP56 |
Operative Temperature | -40/+80°C |

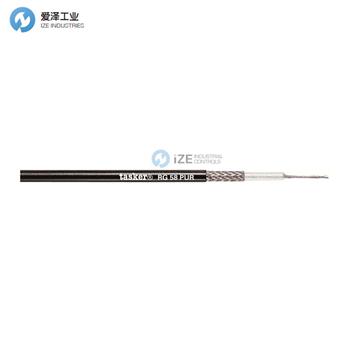

TASKER同軸電纜RG58 PUR產品描述
用于無線電和數字視頻的 50 Ω 同軸電纜符合 MIL C17 F 標準，帶有聚氨酯護套，適合戶外使用。
該電纜適用于公共和私人場所的閉路電視安裝、控制攝像機和視頻安全，用于建筑物、封閉空間和開放室外區域的監控以及任何其他符合 RG58 C/U MIL 標準的視頻頻率應用。
適用于實驗室、超市、機場、醫院、大型場所、體育設施等廣播應用和其他設備。
聚氨酯外護套使電纜適合戶外鋪設，并且能夠抵抗大氣因素、紫外線和摩擦，確保電纜的長久使用壽命。
該電纜燃燒時不會產生氣體或鹵素?zé)熿F。
Coaxial cable for radio and Digital Video 50 Ω conformed to MIL C17 F with sheath in Polyurethane and suitable for outdoor use.
This cable is advised for CCTV installations, Control Video-cameras and Video-security in public and private places, for supervisory of buildings, enclosed spaces and open outdoor areas and any other Videofrequency application of an RG58 C/U MIL standards.
Suitable for Broadcast application and other equipments in : Laboratories, Supermarkets, Airports, Hospitals, Big Areas, Sport facilities etc.
The external sheath in Polyurethane makes the cable suitable for outdoor laying and resistant to: atmospheric agents, UV rays and friction, ensuring a long lasting life to the cable.
This cable does not produce Gases or Halogen Smokes in case of combustion.
TASKER同軸電纜其他常用型號：
TASKER RG178 BU
TASKER RG316U
TASKER RG174AU
TASKER RG58CU
TASKER RG58 PUR
TASKER RG223U
TASKER RG213U
TASKER C525
TASKER C526
TASKER C527
TASKER Cable NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于TASKER同軸電纜RG58 PUR的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
