DANFOSS變頻器FC-302P22KT5E21H1BGXXXXSXXXXAXBXCXXXXDX技術參數
Product details | ||
Gross weight | 33.2 Kilogram | |
Net weight | 29.64 Kilogram | |
Product View (Switch) | GLBL | Global (Standard) |
Product Group | FC- | VLT? AutomationDrive FC- |
Series | 302 | 302 |
Power Rating | P22K | (P22K) 22 KW / 30 HP |
Phase | T | Three phase |
Mains Voltage | 5 | 380 - 500 VAC |
Enclosure | E21 | IP21 / Type 1 |
RFI Filter | H1 | (H1) RFI Class A1/B (C1) |
Brake - Safe Stop | B | Brake chopper |
LCP | G | Graphical Loc. Cont. Panel |
Coating PCB | X | Not coated PCB |
Mains Option | X | No Mains Option |
Adaptation A | X | Standard Cable Entries |
Adaptation B | X | No adaptation |
Software Release | SXXX | Latest release std. SW. |
Software Language Pack | X | Standard Language Pack |
A Option | AX | No A Option |
B Option | BX | No B Option |
C0 Option MCO | CX | No C0 option |
C1 Option | X | No C1 option |
C Option Software | XX | No software option |
D Option | DX | No D option |
Frame Size | B2 | B2 |
Typecode Part 1 | FC-302P22KT5E21H1BGX | |
Typecode Part 2 | XXXSXXXXAXBXCXXXXDX | |
Product Catalog | NO_VIEW | NO VIEW |
Power 160% (HO) [KW] | 22 | 22 |
Power 110% (NO) [KW] | 30 | 30 |
Height [mm] | 664,0 | 664,0 |
Width w/ no C options [mm] | 243,0 | 243,0 |
Depth [mm] | 261,0 | 261,0 |
Depth with Option A/B [mm] | 261,0 | 261,0 |
kVA | 30.5 | 30.5 |
Power Loss NO [W] | 739 | 739 |
Power Loss NO [W] | 739 | 739 |
Power Loss HO [W] | 547 | 547 |
Power Loss HO [W] | 547 | 547 |
Continuous Current (NO) [A] | 61 | 61 |
Intermittent Current (NO) [A] | 67.1 | 67.1 |
Continuous Current (NO) [A] | 52 | 52 |
Intermittent Current (NO) [A] | 57.2 | 57.2 |
Continuous Current (HO) [A] | 44 | 44 |
Intermittent Current (HO) [A] | 70.4 | 70.4 |
Continuous Current (HO) [A] | 40 | 40 |
Intermittent Current (HO) [A] | 64 | 64 |
Calculated Gross Weight [kg] | 33.2 | |
Calculated Package Weight | 3.56 | |
Calculated Net Weight [kg] | 29.64 | |
ECCN EU | Y901 | Y901 |
ECCN US | 3A999.a | 3A999.a |
Vendor | ERR01 | Cannot Determine Vendor |
Recommended Factory | ERR01 | Cannot Determine Vendor |
Modelcode01 | FC-302P22KT5E21H1BGX | |
Modelcode02 | XXXSXXXXAXBXCXXXXDX | |
Recommended Plant | ERR01 | ERR01 |
DANFOSS變頻器FC-302P22KT5E21H1BGXXXXSXXXXAXBXCXXXXDX介紹
頻率變換器
型號：FC-302P22KT5E21H1BGXXXXSXXXXAXBXCXXXXDX
VLT? 自動化驅動器 FC-302
（P22K） 22千瓦 / 30馬力，三相，電壓范圍：380 - 500 VAC
防護等級：IP21 / 類型1
具有制動剎車器
帶圖形界面本地控制面板
未涂層PCB，無市電選項
采用最新版本標準軟件
機架：B2
無A選項，無B選項
無C1和D選項
其他選項可根據型號代碼定制
型號代碼：
FC-302P22KT5E21H1BGXXXXSXXXXAXBXCXXXXDX
VLT? 自動化驅動器是一款單一控制器，能夠控制從普通到伺服類應用在任何機械或生產線上的全部操作范圍。

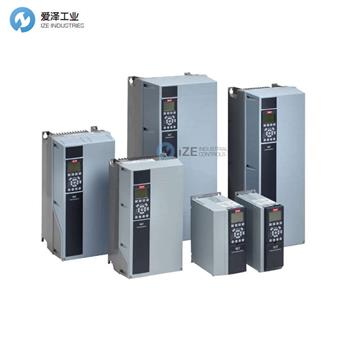

Frequency converter
FC-302P22KT5E21H1BGXXXXSXXXXAXBXCXXXXDX
VLT? AutomationDrive FC-302
(P22K) 22 KW / 30 HP,
Three phase, 380 - 500 VAC,IP21 / Type 1
(H1) RFI Class A1/B (C1)
Brake chopper
Graphical Loc. Cont. Panel
Not coated PCB, No Mains Option
Latest release std. SW.
Frame: B2
No A Option, No B Option
No C1 option, No D option
Other options according to Model code
Model code:
FC-302P22KT5E21H1BGXXXXSXXXXAXBXCXXXXDX
The VLT? AutomationDrive represents a single drive concept that controlsthe entire range of operations from ordinary to servo like applicationson any machine or production line.
