GMC電壓變送器Sineax U 553-41F212E技術參數
Designation | SINEAX U553 |
Mechanical design | 4-Housing P13/70 for rail mounting |
Nominal input frequency | 1-50/60 Hz |
Measuring range | F-0 … 120 V |
Output signal | 2-4 … 20 mA, Rext ≤ 750 Ω |
Power supply | 1-85 … 230 V AC/DC |
Setting time | 2-50 ms |
Test certificate | E-Test certificate in English |
GMC電壓變送器Sineax U553系列產品介紹

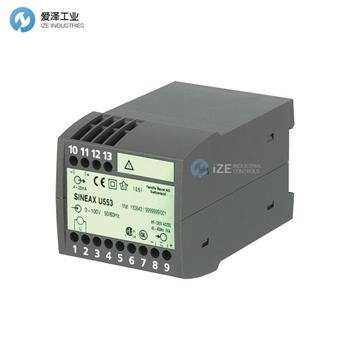

Sineax U553 描述
Sineax U553 AC TRMS 電壓傳感器用于測量交流電壓。有 2 個標準輸入范圍：0…120V 和 0…500V。它不僅能夠準確測量真正的正弦波形，還能測量失真波形，為您提供交流輸入的真均方根測量值，然后將其轉換為成比例的 4…20mA DC 輸出信號。傳感器提供兩種寬電源選項：24…60V AC/DC 或 85…230V AC/DC。
隔離系統符合 EN61010-1 的要求，為了提高安全性，傳感器外殼采用阻燃自熄、不滴落、無鹵素聚碳酸酯制成，符合 UL-94 V0 等級。
Sineax U553 Description
The Sineax U553 AC TRMS Voltage Transducer is used for the measurement of AC Voltage. There are 2 standard input ranges of 0…120V & 0…500V. It’s able to accurately measure not only true sinusoidal waveforms but also distorted wave forms giving you a True RMS measurement of the AC input which is then converted in to a proportional 4…20mA DC output signal. The transducer is offered with a choice of two wide power supply options 24…60V AC/DC or 85…230V AC/DC.
The isolation system meet the requirements of EN61010-1 and for extra safety the transducers case is made from flame retardant self-extinguishing, non-dripping, halogen free polycarbonate with a UL-94 V0 rating.
GMC電壓變送器Sineax U553系列其他常用型號：
GMC Sineax U 553-41F212E
GMC Sineax I552-4112-210
GMC Sineax I552-4112-110
GMC Sineax U539 41Z2 A00
GMC Sineax U539-41Z2-500
GMC Sineax U539-41C2-A00
GMC Sineax U539-41C2 500
GMC Sineax 1538 41A2 A00
GMC Sineax 1538-41A2-500
GMC Sineax 1538-41B2-A00
GMC Sineax 1538-41B2-500
GMC Transmitter NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于GMC電壓變送器Sineax U 553-41F212E的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for GMC products, please feel free to dial 0086-21-3100 6702/ send request email to sales@www.agcjj.cn / browse our website: www.www.agcjj.cn.
