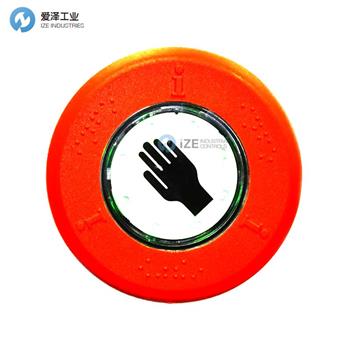

CAPTRON傳感器開關CHT3-156P-41/TG-SR/ST規格
CHT3 | |
Mounting / version of the coloured cover ring | 1: A-mounting / Standard coloured cover ring |
Type of connection 4 | 5: Connector M8 |
Colour of the coloured cover ring | 6: Traffic black (RAL 9017) |
LED control 3 / Numbers of pins / Output | P: Semi-Automatic / 4-pin / PNP-NO |
Symbol on switch surface | 41 |
LED colours (LED1 – LED2) | TG-SR: Green (LED1) / Red (LED2) - |
ST |
CAPTRON傳感器開關CHT3系列介紹
不同的形狀、安裝深度和插入式連接意味著CHT3系列適合廣泛的用途。 根據應用，可以選擇嵌入式安裝的開關，帶有玻璃纖維增強聚碳酸酯蓋環或帶有保護環，以防止工廠和機械工程應用區域的意外啟動或污垢。
CHT3 是根據 TSI-PRM 的要求設計的。 對于行動不便的人來說，傳感器開關可以在彩色蓋環上帶有盲文或凸起的象形文字。
除了通過 16 個明亮的 LED 發出視覺信號和蜂鳴器外，還可以配備 CHT3 開關。 它的應用領域包括公共汽車和火車上的安裝以及緊急呼叫和信息欄。
觸摸控制
使用方便，無需機械壓力。
反饋
通過 16 個 LED 和蜂鳴器發出視覺和聲音信號。
抗沖擊
傳感器不會被打火機火焰或重擊損壞。
100% 防水防油 - IP69K
傳感器完全密封在鑄造樹脂中。
使用壽命長
超過 1 億次操作循環（晶體管輸出）。
可訪問性
彩色蓋環或傳感器區域上有盲文和凸起的 V 形圖案。
Different shapes, installation depths and plug-in connections mean that the CHT3 series is suitable for a wide range of uses. Depending on the application, you can choose switches for flush installation, with fiber-glass-reinforced polycarbonate cover ring or with a protective collar to prevent accidental actuation or dirt for application areas in plant & mechanical engineering.
The CHT3 was designed according to the requirements of TSI-PRM. For people with limited mobility, SENSORswitches are available with Braille or raised pictograms at the colored cover ring.
CHT3 switches can be equipped in addition to the visual signal through 16 bright LEDs with an acoustic beeper. It′s field of application covers installation in buses and trains as well as for emergency call and information columns.
Touch Control
High ease of use, no mechanical pressure required.
Feedback
Visual and acoustic signals through 16 LEDs and beeper.
Shock-resistant
The sensor cannot be destroyed by lighter flames or severe blows.
100 % water & oil-proof - IP69K
Sensor completely sealed in cast resin.
Durable service life
More than 100 million operation cycles (transistor output).
Accessibility
Braille and raised chevrons on coloured cover ring or sensor area.
CAPTRON傳感器開關常見型號：
CAPTRON CHT3-156P-41/TG-SR/ST
CAPTRON CHT3-456B-41/TG-SR
CAPTRON CHT3-F5XP-41/TG-SR
CAPTRON CHT3-151P-41/TG-SR
CAPTRON CHT3-151P-H/TG-SR/ST
CAPTRON CHT3-156P-H/TG-SR
CAPTRON Touch switch NEW + ORIGINAL+ ONE YEAR WARRANTY
