HONEYWELL限位開關EX系列技術參數
Specifications | |
Product type | MICRO SWITCH? hazardous location limit switches |
Actuators | overtravel top plunger |
Circuitry | SPDT, DPDT |
Electrical | 1 A, 3 A, 5 A, 10 A, 15 A, and 20 A |
Housing material | Aluminum die-cast |
Termination types | 1/2-14 NPT conduit, preleaded |
Sealing | NEMA 1, 7, and 9, UL listed, and CSA certified: |
Operating temperature | -40 °C to 71 °C [-40 °F to 160 °F] |
Agency approvals and standards | IEC Ex, ATEX (CE), UL, CSA |
UL listed | #E14274 |
CSA certified | #LR57324 |
ATEX directive | KEMA 04ATEX2312X |
IEC Ex certified | KEM 08.0012X |
UNSPSC code | 302119 |
UNSPSC commodity | 302119 Switches and controls and relays |
HONEYWELL限位開關EX系列介紹
MICRO SWITCH? EX 系列開關具有小的 UL 認證外殼，可用于危險場所。 EX 系列開關腔設計用于將膨脹氣體冷卻至低于周圍爆炸性環境的點火溫度。 EX 系列能夠切換高達 20 安培的電流，同時提供充足的接線空間以便于安裝。 提供單導管和雙導管開口。 雙導管開口可以允許多個開關的直通布線。 EX 系列可以從開關的四個側面中的任何一個進行安裝。

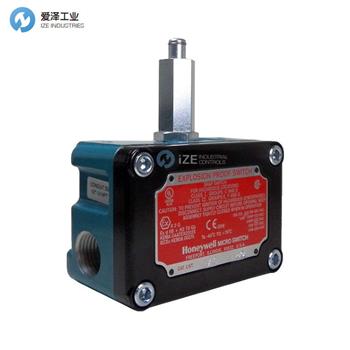

MICRO SWITCH? EX Series switches feature the smallest UL-listed housings available for use in hazardous locations. The EX Series switch cavity is designed to cool expanding gases below the ignition temperature of the surrounding explosive atmosphere. The EX Series is capable of switching up to 20 amps while providing ample wiring space for ease of installation. Single and double conduit openings are available. Dual conduit openings may allow for through wiring of multiple switches. The EX Series can be mounted from any of the switch’s four sides.
HONEYWELL限位開關EX系列其他常用型號：
HONEYWELL EX-AR1613
HONEYWELL EX-AR1620
HONEYWELL EX-AR-1621
HONEYWELL EX-AR182
HONEYWELL EX-AR20
HONEYWELL EX-AR230
HONEYWELL EX-AR30
HONEYWELL EX-AR400
HONEYWELL EX-AR420
HONEYWELL EX-AR471-15
HONEYWELL EX-AR471-3
HONEYWELL EX-AR50
HONEYWELL EX-AR68
HONEYWELL EX-AR8
HONEYWELL EX-Q
HONEYWELL EX-Q1
HONEYWELL EX-Q171
HONEYWELL EX-Q173
HONEYWELL EX-Q19
HONEYWELL EX-Q22
HONEYWELL EX-Q400
HONEYWELL EX-Q62
HONEYWELL EX-Q800
HONEYWELL LIMIT SWITCHES NEW + ORIGINAL+ ONE YEAR WARRANTY
