HOSCO雙層軟管CPH-4TL技術參數
Part Number | CPH-4TL |
OD | .350’’ 8.9MM |
ID | 1/4’’ 6.35MM |
Wall | .05’’ 1.27MM |
Working Pressure | 200 PSI 14 BAR |
Bend Radius | 1.75’’ 44.45MM |
Standard Reel Size (Ft) | 500 |
Standard Coil Size (Ft) | 100 |
HOSCO雙層軟管CPH系列介紹
Hosco 有一個獨特的軟管，與尼龍軟管或等效尺寸的管材相比，它在靈活性和減輕重量方面提供了顯著的人體工程學改進。 此外，與實心尼龍軟管或管材相比，多層結構增加了介電強度。 CPH 系列軟管有 1/4”、5/16” 和 3/8” ID 尺寸可供選擇，尺寸與 NP-4 (6.35mm)、NP-5、(8mm) 或 NP-6 ( 9.7mm) 實心尼龍軟管，使用同一系列的連接器。 CPH 在內襯和外罩上有一層薄薄的 PA-Nylon 護套，可像實芯 PA-Nylon 一樣提供耐溶劑或化學侵蝕，但其芯管是 PUR-PolyUrethane，可增加柔韌性并減輕重量 . 與 PA-Nylon 相比，多層結構似乎提供了額外的介電強度，但與 FEP、PTFE 或 UHPPFA 氟聚合物性能水平的介電強度相比卻沒有。
特點
三層結構
?提供更好的靈活性和更輕的軟管包
? 與 PA-Nylon 相比，提高了對介電針孔的抵抗力
多種尺寸可供選擇
?常見的 1/4” (6.35mm)、5/16” (8mm) 和 3/8” (9.7mm) 內徑尺寸
無硅認證
?準備好服務于油漆應用，無需擔心
Hosco has a unique hose that provides significant ergonomic improvement of flexibility and weight reduction versus the nylon hose or tubing equivalent size. In addition, there is benefit to increasing the dielectric strength with the multiple layer construction versus solid core nylon hose or tubing. The CPH series of hose is available in 1/4”, 5/16” and 3/8” ID sizes and is dimensionally equivalent to NP-4 (6.35mm), NP-5, (8mm) or NP-6 (9.7mm) solid core nylon hose using the same family of connectors. The CPH has a thin sheath of PA-Nylon on the inside lining and outside cover to provide resistance to solvent or chemical attack like solid core PA-Nylon, but its core tube is PUR-PolyUrethane to provide the increase in flexibility and reduction in weight. The multi-layer construction seems to provide additional dielectric strength when compared to PA-Nylon but not to the dielectric strength of FEP, PTFE or UHPPFA Fluoropolymers performance level.
Feature and Benefits
Three Layer Construction
?Provides better flexibility and lower weight hose packages
?Improved resistance to dielectric pinholing versus PA-Nylon
Multiple Sizes Available
?Common 1/4” (6.35mm), 5/16” (8mm)and 3/8” (9.7mm) ID sizes
Certified Silicone Free
?Ready for service into paint applications with no concerns

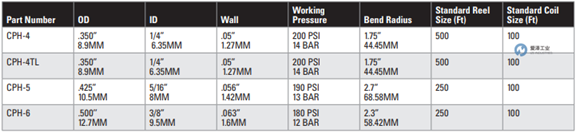

HOSCO雙層軟管CPH系列選型
HOSCO雙層軟管CPH系列其他常用型號：
HOSCO CPH-4
HOSCO CPH-4TL
HOSCO CPH-5
HOSCO CPH-6
HOSCO Coaxial Paint Hose NEW + ORIGINAL+ ONE YEAR WARRANTY
