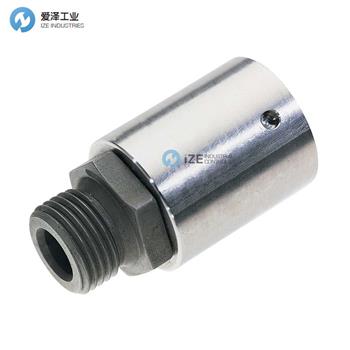

DUFF-NORTON旋轉接頭1000系列產品參數
TECHNICAL FEATURES | |
REFERENCE | 1000 K : nickel plated steel |
DIMENSIONS | 1/4" to 3" BSP |
MATERIAL | 1000 K : nickel plated steel |
THREAD | Male and female connection |
PRESSURE | 0 to 50 bar except 316 L (see table) |
TEMPERATURE | 200° C maxi |
ROTATION | Swiveling motion |
APPLICATION | Attached fi ttings on hoses for decanting hose reels. |
OBSERVATIONS | Attached fi ttings on hoses for decanting hose reels. |
CONNECTION | With flexible hoses |
USE | Oil, air, gas, vacuum, water (1000 K), chemicals (1000 I), lubrication (from the 1027) |

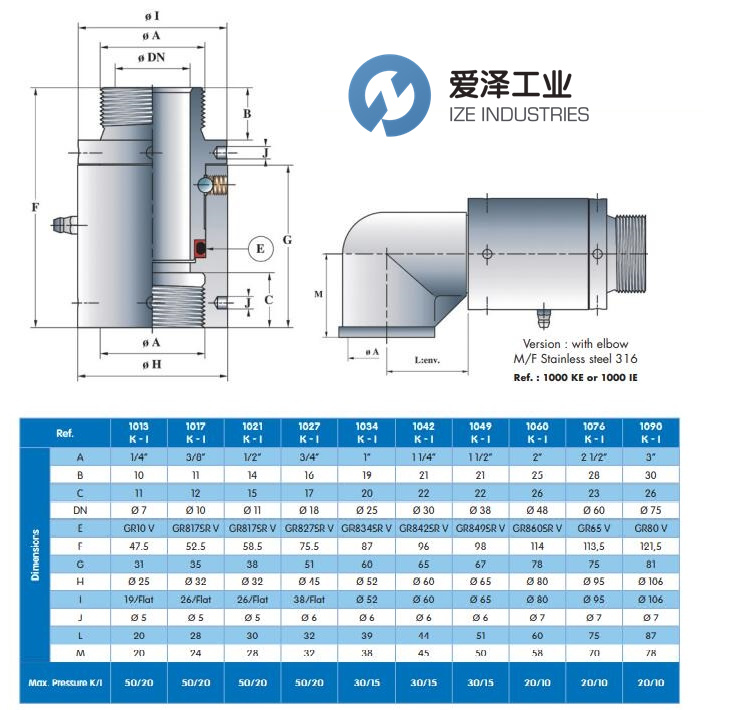

DUFF-NORTON旋轉接頭1000系列選型
Description:
With their simple design, these connections allow you to carry your fluids up to 50 bar pressures while ensuring either an oscillating movement or a continuous rotation of a few rpm.
Activities:
– Food
– Construction, Building, Wood, Habitat
– Energy, Environment
– Metallurgy, Mechanics and Subcontracting
– Trading
– Paper, Printing, Publishing
– Transport and Logistics
描述：
憑借其簡單的設計，這些連接允許在高達50 bar的壓力下輸送流體，同時確保振蕩運動或幾rpm的連續旋轉。
活動內容：
- 餐飲
–建筑，建筑，木材，人居
–能源，環境
–冶金，力學和分包
–交易
–紙，印刷，出版
–運輸和物流
DUFF-NORTON旋轉接頭1000系列其他常見型號：
DUFF-NORTON 1042K
DUFF-NORTON 1013K-I
DUFF-NORTON 1017K-I
DUFF-NORTON 1021K-I
DUFF-NORTON 1027K-I
DUFF-NORTON 1034K-I
DUFF-NORTON 1042K-I
DUFF-NORTON 1049K-I
DUFF-NORTON 1060K-I
DUFF-NORTON 1076K-I
DUFF-NORTON 1090K-I
DUFF-NORTON ROTATING JOINTS NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于DUFF-NORTON旋轉接頭1042K的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for DUFF-NORTON products, please feel free to dial 0086-21-3100 6702/ send request email to sales@www.agcjj.cn / browse our website: www.www.agcjj.cn.
DUFF-NORTON旋轉接頭1042K產品參數
