ROTOFLUX旋轉接頭BH10-1722-05L技術參數
 | |

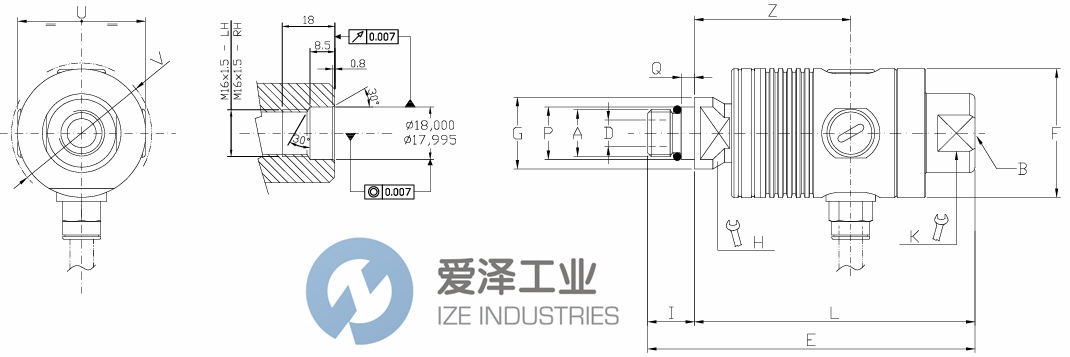

Ordering code | BH10-1722-05L |
A | M16X1,5LH |
B | G3/8"Axial |
?D | 9 |
E | 112 |
?F | 44 |
?G | 24,5 |
H | 17 |
K | 24 |
I | 16 |
L | 96 |
?P | 18 |
Q | 4,5 |
U | 43,6 |
?V | 47,5 |
?Z | 53,5 |
Kg | 0,5 |

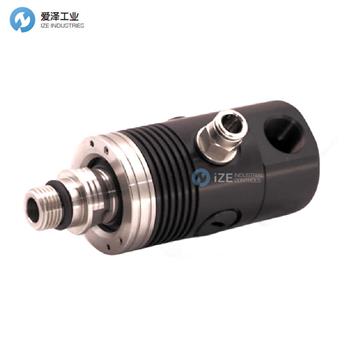

ROTOFLUX旋轉接頭BH系列介紹
BH 型旋轉接頭專為高速運轉的機床主軸而設計，可使流體（冷卻液、空氣或 MQL）流過，或在需要時進行干式操作。平衡和微研磨的密封件在濕式運行（有流體流過）和干式運行（無流體）期間均保持關閉和有效，確保長期無故障性能。
The rotary unions of the model BH have been designed for machine tool spindles operating at high speed with fluid (coolant, air, or MQL) passing through or for dry operation when needed. The seals, balanced and microlapped, remain closed and effective both during wet runs (with fluid passing through) and dry runs (without fluid), ensuring long-lasting performance without issues.
ROTOFLUX旋轉接頭BH系列其他常用型號：
ROTOFLUX BH08-1501-04R
ROTOFLUX BH08-1501-05L
ROTOFLUX BH10-1701-04R
ROTOFLUX BH10-1701-05L
ROTOFLUX BH08-1502-04R
ROTOFLUX BH08-1502-05L
ROTOFLUX BH10-1702-04R
ROTOFLUX BH10-1702-05L
ROTOFLUX BH08-1520-04R
ROTOFLUX BH08-1520-05L
ROTOFLUX BH10-1720-04R
ROTOFLUX BH10-1720-05L
ROTOFLUX BH08-1522-04R
ROTOFLUX BH08-1522-05L
ROTOFLUX BH10-1722-04R
ROTOFLUX BH10-1722-05L
