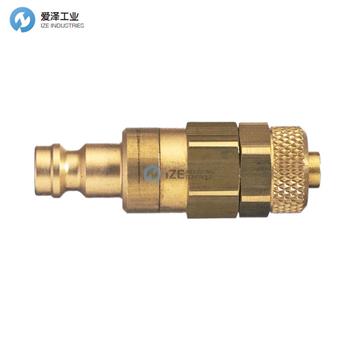

PARKER接頭21SBKO06MPX技術規格
Technical Specifications | |
Coupling Half: | Plug |
Connection Size: | 4x6 mm |
Brand: | Parker, Rectus |
Division: | Low Pressure Connectors Europe Division |
Industry: | Electronics, General Industrial, Healthcare & Life Sciences, Transportation |
Application: | Energy Management, Electronics, Food & Beverages, In-Plant Automotive, Industrial Machinery, Laboratory, Diagnostics, Pharma, Trucks & Trailers |
Version: | Double Shut-Off |
Technology: | Pneumatics, Fluid & Gas Handling |
Product Type: | Pneumatic Quick Couplings |
Product Style: | Quick-Connect |
Product Series: | Series 21 |
Maximum Operating Pressure: | up to 35 bar |
Connection Type: | Tube with Hose Nut, without Spring Guard |
Connection Size: | 4x6 mm |
Maximum Operating Temperature: | 100 °C, 212 °F |
Minimum Operating Temperature: | -20 °C, -4 °F |
For Fluid Type: | Chemical Fluids, Gases, Water |
Flow Rate: | 2.7 L/min (water) |
Body Material: | Brass |
Seal Material: | NBR |
Interchange Type: | European Profile |
Coupling Half: | Plug |
Compatible Fitting: | Series 21 Coupler |
Valve Type: | Standard Valve |
Function: | Double Shut-Off |
Operation Type: | n/a |
Plating Type: | Without Surface Treatment |
Diameter: | 5 mm (nominal) |
Hex Size: | 14 mm |
Specifications Met: | ATEX, RoHS |
Materials of Construction: | Brass |
Weight: | 0.028 kg |
Quantity per Box: | 5 |
Region of Origin: | Germany |
Valve Included: | Yes |
Shape: | Straight |
Connection Type: | With Plastic Hose Connection |
PARKER接頭21系列介紹
Parker系列21是一款具有歐洲標準外形的迷你工業連接件。該連接系統采用單手操作，液體和氣體介質具有優異的流量性能。
市場領域：
工業
電子與能源管理
救援設備
生命科學
機械制造
物料搬運
交通運輸
汽車
工藝流程
食品和飲料
特點/優勢：
迷你工業連接件
單手操作，便于快速連接
歐洲標準外形設計，全球代表性
提供干斷（dry-break）版本
可配備安全鎖系統，防止意外斷開
Parker’s Series 21 is a mini-industrial coupling with European profile. Coupling system with single-hand operation. Above average flow performance for liquid and gaseous media.
Markets:
- Industrial
- Electronics and energy management
- Rescue Equipment
- Life Science
- Machinery construction
- Material Handling
- Transportation
- Automotive
- Process
- Food & Beverage
Features/Benefits:
- Mini Industrial Coupling
- Single-hand operation for easy and fast connection
- European profile is the most representative profile worldwide
- Dry-break version available
- Additional safety locking system available to prevent unintentional disconnection
PARKER接頭21系列其他常用型號：
PARKER 21KATF09MPN
PARKER 21KATF10MPX
PARKER 21KATF10MPN
PARKER 21KATP06MPX
PARKER 21KATP06MPN
PARKER 21KAK006MPX
PARKER 21SBKK06MPN
PARKER 21SBKK08MPX
PARKER 21SBKK08MPN
PARKER 21KLAW10MPX
PARKER 21KLAW10MPN
PARKER 21KLAW13MPX
PARKER 21KLAW13MPN
PARKER 21KLAW17MPX
PARKER 21KLAW17MPN
