ANSUL控制面板542R系列技術參數
System Capacity | |
Annunciators: | 8 |
Electrical Specifications | |
AUTOPULSE 542R (FLPS-7 Power Supply): | 120 VAC, 50/60 Hz,2.3 amps |
AUTOPULSE 542R(E) (FLPS-7 Power Supply): | 240 VAC, 50 HZ,1.15 amps |
Wire Size: | Minimum 14 AWG (2.0 mm2) with 600 V insulation, supervised, nonpower-limited |
Cabinet Specifications | |
Door: | 19.26 in. (489 mm) high x 16.82 in. (427 mm) wide x 0.72 in.(18 mm) deep |
Backbox: | 19.00 in. (483 mm) high x 16.65 in. (423 mm) wide x 5.25 in.(133 mm) deep |
Trim Ring (TR- CE): | 22.00 in. (559 mm) high x 19.65 in. (499 mm) wide |
Shipping DIMENSION | |
Height: | 20.00 in. (508 mm) |
Width: | 22.50 in. (572 mm) |
Depth: | 8.50 in. (216 mm) |

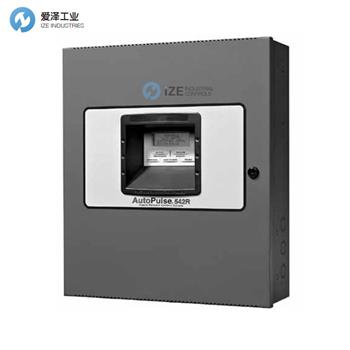

ANSUL控制面板542R系列介紹
AUTOPULSE 542R是一種毒劑釋放控制面板，適用于單一和雙重危險劑釋放應用。AUTOPULSE 542R為需要基于代理的釋放的商業、工業和機構建筑提供可靠的火災探測、信號和保護。AUTOPULSE 542R與System Sensor的i3探測器兼容，這些探測器是傳統的煙霧探測器，當環境溫度低于探測器額定值大約45°時，可以將維護故障信號傳輸?shù)矫姘?，指示需要清潔和監控“凍結”信號F (7°C)。此外，控制面板兼容常規輸入設備，如兩線感煙探測器、四線感煙探測器、手拉站、水流裝置、防拆開關等常開觸點裝置。
四個輸出可編程為 NAC（通知設備電路）或釋放電路。主電路板上還包括三個可編程的 C 型繼電器（工廠為報警、故障和監控編程）和 24 VDC 特殊應用可復位和不可復位電源輸出。 AUTOPULSE 542R 監控所有接線、交流電壓、電池充電器和電池電量。
The AUTOPULSE 542R is a six-zone Agent Releasing Control Panel for single and dual hazard agent releasing applications. The AUTOPULSE 542R provides reliable fire detection, signaling and protection for commercial, industrial and institutional buildings requiring agent-based releasing. The AUTOPULSE 542R is compatible with System Sensor’s i3 detectors which are conventional smoke detectors that can transmit a maintenance trouble signal to the panel indicating the need for cleaning and a supervisory ‘freeze’ signal when the ambient temperature falls below the detector rating of approximately 45 °F (7 °C). In addition,the control panel is compatible with conventional input devices such as two-wire smoke detectors, four-wire smoke detectors, pull stations,waterflow devices, tamper switches and other normally-open contact devices.
Four outputs are programmable as NACs (Notification Appliance Circuits) or releasing circuits. Three programmable Form-C relays (factory programmed for Alarm, Trouble and Supervisory) and 24 VDC special application resettable and non-resettable power outputs are also included on the main circuit board. The AUTOPULSE 542R supervises all wiring, AC voltage, battery charger and battery level.
ANSUL控制面板542R系列其他常用型號：
ANSUL 433607
ANSUL 433608
ANSUL control panel NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于ANSUL控制面板433607的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for ANSUL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@www.agcjj.cn / browse our website: www.www.agcjj.cn.
ANSUL控制面板542R系列433607介紹
