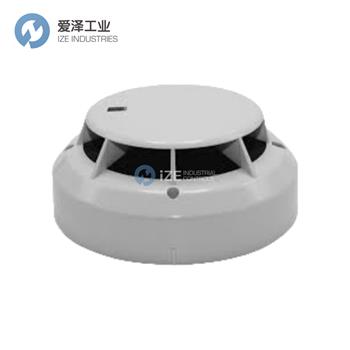

HOCHIKI熱探測器SOE-24V技術參數
Sensing Element | |
Smoke | IR LED, Blue LED, Photodiode |
Supply Voltage | |
Operating Voltage Range | 8-35VDC |
Absolute Max Voltage | 42VDC |
Maximum Voltage Ripple | 8200mVAC |
Maximum Input Capacitance | 0.01uF |
Current Consumption | |
Standby Current | 59μA |
Remote Indicator Current | 8.0mA (Internally Limited) |
Minimum Allowable Alarm Current | 5mA |
Maximum Allowable Alarm Current | 150mA |
Startup | |
Time | 25s (Max) |
Current | 160uA (Max) |
Reset | |
Time | 100ms (Min) |
Voltage | 2.5V (Min) |
Smoke Density Range | 1.82-3.16%/ft@ Open area |
Compatible Bases | NS4-100, NS6-100, NS4-220, NS6-220, NS4 -221, NS6-221, NS4-224, NS6-224 |
Operating Temperature Range | 32°F ~ 120°F |
UL Listed Ambient Temperature | 32°F ~ 120°F |
Storage Temperature Range | -22°F ~ +140°F |
Operating Humidity Limit | <95%RH at 104°F, <80%RH at 120°F |
Dimension | 3.94” diameter x 1.77” tall |
Color | Ivory |
Weight | 3.4 oz. |
HOCHIKI熱探測器SOE-24V產品介紹
SOE-24V 描述
SOE-24V（通過UL 268第七版認證）是新開發的多光譜煙霧分類技術，可以檢測由傳統材料和聚氨酯燃燒引起的陰燃和明火，同時減少誤報。
它是一款可靠的高質量多標準光電煙霧探測器，適用于需要光電煙霧探測器的所有開放區域。
SOE-24V 特點與規格
優化的誤報減少功能和增強的真實火災反應時間
高信噪比和靈敏度穩定性，適合多種環境條件
大視角報警指示器
自動漂移補償和維護指示
內置磁性測試功能
工作電壓范圍：8-35 VDC
絕對最大電壓：42 VDC
最大電壓波紋：8200 mVAC
待機電流：59μA
最低允許報警電流：5mA
最大允許報警電流：150mA
SOE-24V Description
SOE-24V (UL 268 7th edition listed) is the newly developed multi-spectrum smoke categorization technology that detects smoldering and flaming fires fueled by traditional materials and polyurethane while reducing nuisance alarms.
It is a reliable, high-quality multi-criteria Photoelectric Smoke Detector and can be used in all open areas where Photoelectric Smoke Detectors are required.
SOE-24V Features & Specifications
- Optimized reduction to false alarms and enhanced reaction time to real fire
- High signal-to-noise ratio and sensitivity stability effective in a wide range of environmental conditions
- Wide viewing angle alarm indicators
- Automatic drift compensation and maintenance indication
- Built-in magnetic test feature
Operating Voltage Range: 8-35VDC
Absolute Max Voltage: 42VDC
Maximum Voltage Ripple: 8200mVAC
Standby Current: 59μA
Minimum Allowable Alarm Current: 5mA
Maximum Allowable Alarm Current: 150mA
