HOCHIKI熱探測器DCD-135技術參數

HOCHIKI熱探測器DCD-135產品介紹

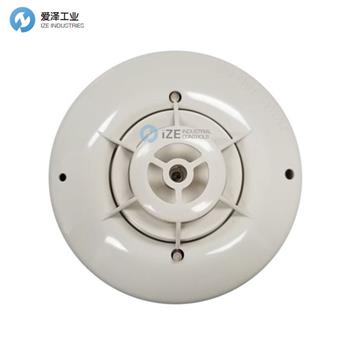

DCD-135 描述

DCD-135 是一種固定溫度/速率上升型熱探測器，適合安裝在預期會有高熱輸出火災的地方，或在環境條件不允許使用其他探測方法的區域。熱探測器旨在保護財產，不可依賴熱探測器進行生命安全保護。在生命安全問題上，必須同時使用煙霧探測器。必須由獲得UL認證的火災報警面板對DCD-135熱探測器進行電子監督。

所有NS常規設備在機械上與Hochiki America的HSB、HSC和YBA型基座兼容。請檢查各個面板的清單以獲得合適的認證基座。

DCD-135固定溫度/速率上升型熱探測器適合檢測因可燃物燃燒導致的溫度緩慢或快速上升。該型號的結構包括一個由耐用塑料保護的熱敏電阻熱元件。這些電子熱探測器包含兩個電源/報警LED，可360°指示狀態。在待機狀態下，電源LED閃爍為綠色。在報警狀態下，LED固定為紅色。

DCD-135 特點與規格

可選擇固定溫度/速率上升135°F或190°F熱探測器

UL認證的覆蓋距離為70' x 70'

高度穩定的操作，射頻/瞬變保護

電源/報警LED確認探測器狀態

與Hochiki SLR-24V和SIJ-24探測器及其基座兼容

監督電流：35μA @ 24 VDC

浪涌電流：最大160μA @ 24 VDC

報警電流：最大150mA @ 24 VDC

環境溫度：32°F至120°F（0°C至49°C）

顏色和外殼材料：骨白色PC/ABS混合物

DCD-135 Description

DCD-135, a fixed temperature/rate-of-rise heat detector is suited for installation where high heat output fires are expected or in areas where ambient conditions would not allow the use of other detection methods. Heat detectors are intended for the protection of property. Do not rely on heat detectors for life safety protection. Where life safety is a concern, smoke detectors must also be used. A UL-listed fire alarm panel must electronically supervise the DCD-135 heat detectors.

All NS conventional devices are mechanically compatible with Hochiki America HSB, HSC, and YBA type bases. Please check individual panel listings for appropriate listed bases.

The DCD-135 fixed temperature/rate-of-rise heat detectors are suited to detect the presence of slow or fast-rising temperatures due to burning combustibles. The construction of these models incorporates a thermistor heat element protected from damage by the built-in, durable plastic guard. These electronic heat detectors incorporate two power/alarm LED's for 360° indication of status. In standby conditions the power LED's flash Green. In an alarm condition the LED's latch on Red.

DCD-135 Features & Specifications

- Choice of fixed temperature/rate-of-rise 135°F or 190°F heat detector

- UL Listed spacing up to 70' by 70'

- Highly stable operation, RF/Transient protection

- Power/alarm LED's confirm detector status

- Compatible with Hochiki SLR-24V and SIJ-24 detectors and their bases

Supervisory Current: 35μA @ 24 VDC

Surge Current: 160μA max. @ 24 VDC

Alarm Current: 150mA max. @ 24 VDC

Ambient Temperature: 32°F to 120°F | (0°C to 49°C)

Color & Case Material: Bone PC/ABS blend

HOCHIKI熱探測器DCD系列其他常用型號：

HOCHIKI DCD-135

HOCHIKI DCD-190
