ANCORP球閥F4200-QF50產品參數
| |
Part Number | 3002035 |
Reference Number | F4200-QF50 |
Ball Port | 1.87” |
End Cap Type | QF50 |
End Cap Tube Size | 2” O.D. |
Conduct. (L/SEC) | 87 |
A | 6.31 |
B | 5.4 |
C | 4.3 |
D | 8.0 |
E | 4.1 |
F | 3.5 |

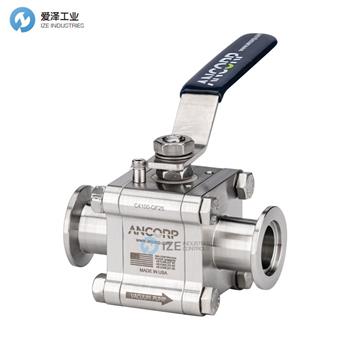

ANCORP球閥產品介紹
Description
ANCORP’s ball valves consist of a body, stem, ball, and two end caps machined from corrosive resistant 316L stainless steel. Fluoroelastomers are used to seal the stem and end caps from atmosphere while the Teflon? seats cold flow around the ball to isolate the process when closed. The valve is opened and closed manually or pneumatically by ? turn, quick actuation. The Teflon? sealing surface helps to protect it from deposition, maintaining a clean dynamic seal to prevent failure due to contamination.
Applications
The corrosive resistant, fast actuating design of ANCORP’s vacuum ball valves makes them ideal for isolating reactors, traps, and scrubbers on vacuum process tools.
Features
Vacuum rating of 1×10-8 torr
Bakeable to 150°C (200°C intermittent)
Manufactured from 316L stainless steel
High conductance; straight through flow
Particulate resistant ball/seat design lengthens time between maintenance cycles
Service valve without removal from the system
描述
ANCORP的球閥由一個閥體、閥桿、球體和兩個由耐腐蝕316L不銹鋼加工而成的端蓋組成。含氟彈性體用于密封閥桿和端蓋與大氣隔絕，而 Teflon將冷流固定在球周圍以在關閉時隔離過程。閥門通過手動或氣動方式打開和關閉 ? 圈，快速啟動。Teflon密封表面有助于防止其沉積，保持清潔的動態密封以防止因污染而導致故障。
應用
ANCORP真空球閥的耐腐蝕、快速啟動設計使其成為隔離真空工藝工具上的反應器、疏水閥和洗滌器的理想選擇。
特征
真空等級 1×10-8 torr
可烘烤至 150°C（200°C 間歇性）
由316L不銹鋼制造
高電導；直通流
防顆粒物球/閥座設計延長了維護周期之間的時間
維修閥無需從系統中拆除

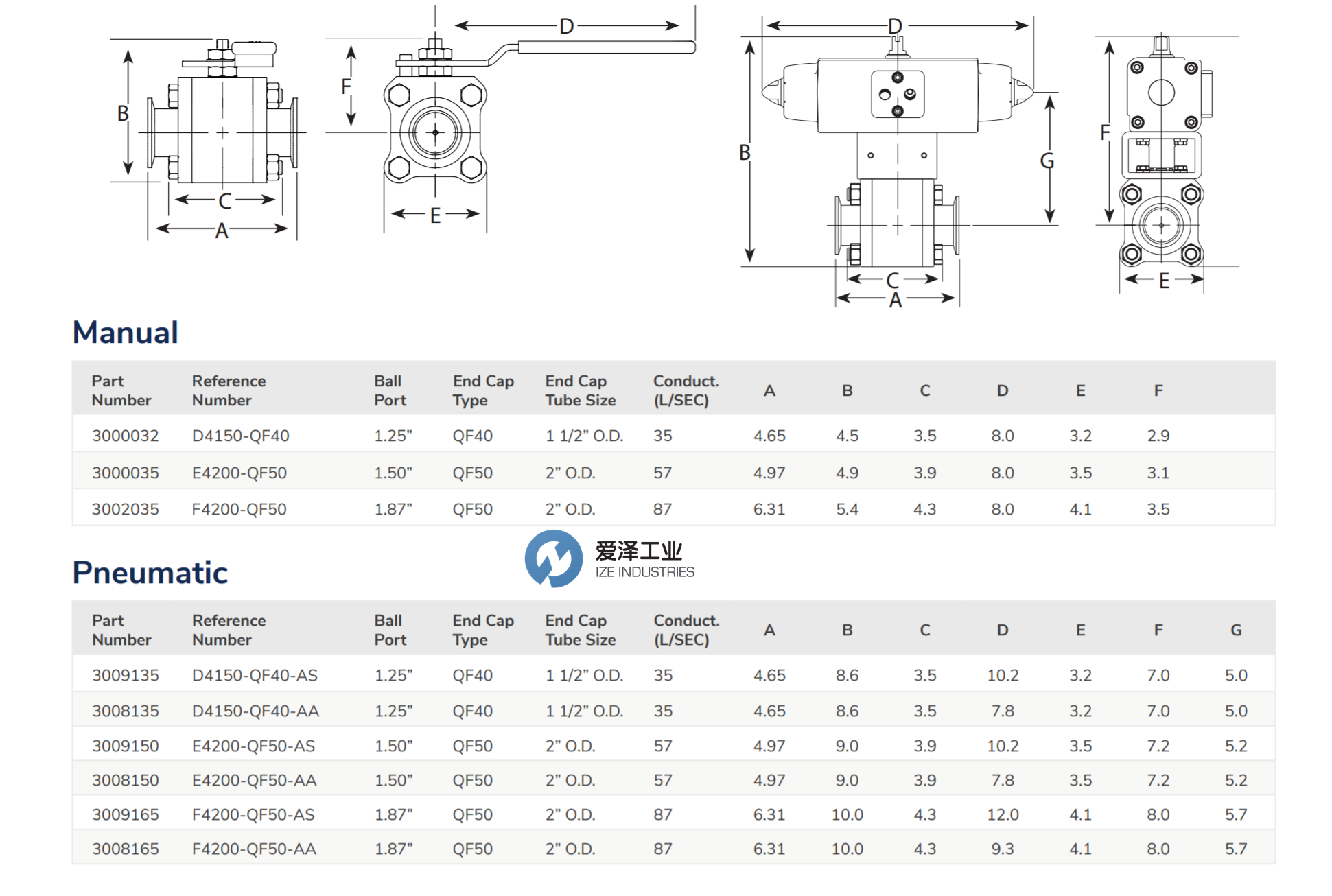

外觀尺寸及選型
ANCORP球閥其他常見型號：
ANCORP 3000028 B4075-QF16
ANCORP 3000029 B4100-QF25
ANCORP 3000030 C4100-QF25
ANCORP 3000031 C4150-QF40
ANCORP 3000032 D4150-QF40
ANCORP 3000035 E4200-QF50
ANCORP 3002035 F4200-QF50
