BUHLER采樣泵P2.x ATEX產品參數
Technical data | |
Marking: | Ex II 2/2 G c IIC T3/T4 X |
Protection class | electric IP 54 |
Dead volume: | 0.5 cu.in. |
Weight: | 16.5 lb (P 2.2 Atex) |
Materials in contact with media vary by configuration: | PTFE, PVDF (standard pump with 212 °F valves) |
Pumps 400 l/h (6.7 lpm) | |
Ambient temperature： | |
Motor 115 V / 230 V: | -4 °F to 122 °F |
Motor 380 - 420 V & 500 V: | -4 °F to 104 °F |
Pump head: | see temperature classes |
Valve medium temperature*: | PTFE/PVDF max. 212 °F |

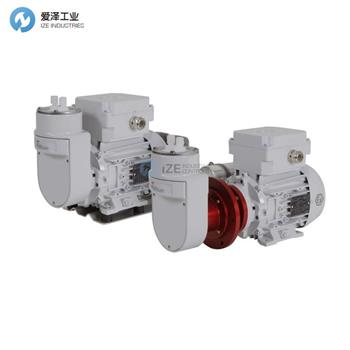

BUHLER采樣泵P2.x ATEX產品介紹
即使在化學工業，石油化學或生物化學的爆炸系統中，氣體分析對于安全操作也是至關重要的。這些領域中使用的許多分析過程都需要對樣氣進行提取和特殊處理。
樣氣泵將樣氣從采樣點傳送到調節系統。這些經過特殊設計的泵的主要部件是PTFE單件波紋管。
該解決方案與泵頭（也是單件式）結合使用，可對特別腐蝕性的樣品氣體提供高抵抗力。轉動泵頭可以毫無問題地輸送冷凝水。
根據需求，有幾種帶有單獨驅動器的不同型號。這些版本允許安裝聯軸器法蘭，以將泵頭安裝在遠離電動機的加熱外殼內，而電動機仍在外殼外部。
該系列可用于各種EX危險區域和分類區域，流量高達700 l / h（11.7 lpm）。
Even in explosive systems in the chemical industry,petrochemistry or biochemistry, gas analysis is key for safe operation. Many of the analysis processes used in these fields require extracting and special conditioning of the sample gas.
Sample gas pumps convey the sample gas from the sampling point to the conditioning system. The main item in these specially designed pumps is the PTFE single-piece bellow.
Combined with the pump head, also single-piece, this solution provides high resistance against particularly aggressive sample gas. Turning the pump head allows gas with condensate to be conveyed without a problem.
There are several different models with separate drive,depending on the requirements. These versions allow the installation of a coupling flange to install the pump heads inside heated housings away from the motor whilst the motor remains outside the housing.
The series are available for various EX hazard and classification zones with flow rates up to 700 l/h (11.7 lpm).
BUHLER采樣泵其他常見型號：
BUHLER P2.2
BUHLER P2.4ATEX
BUHLER P2.72
BUHLER P2.74ATEX
