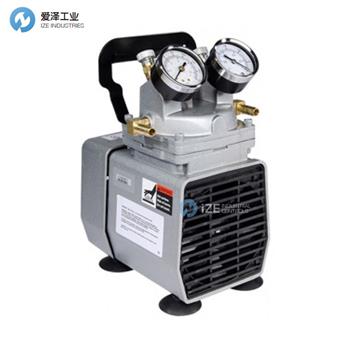

GAST真空泵DOA-P504-BN規格描述
Specifications & Description | |
Wetted Parts | 304 Stainless Steel, Aluminum, Nordel?, Nomex? |
Free-Air Capacity (CFM) | 1 |
Free-Air Capacity (LPM) | 28.3 |
Free-Air Capacity (LPH) | 1698 |
Max Flow Rate (CFM) | 0.99 |
Max Flow Rate (Liters/min) | 28.3 |
Max Pressure (PSI) | 60 |
Max Pressure (bar) | 4.14 |
Max Vacuum (in Hg) | 24 |
Max Vacuum (mbar) | 200.7 |
Max Vacuum (mm Hg) | 150.4 |
Max Vacuum (torr) | 150.4 |
Noise Level (dB) | 68 |
Port Size | 1/4" NPT(F), 3/8" hose barb on gauges |
Max Temperature (° F) | 100 |
Max Temperature (° C) | 38 |
Duty Cycle | Continuous |
Power (VAC) | 220 |
Power (amps) | 2.2/1.9 |
Power (Hz) | 50 |
Motor Type | permanent split capacitor |
Stages | 1 |
Height (in) | 10.25 |
Length (in) | 7.625 |
Height (cm) | 26.04 |
Length (cm) | 19.37 |
Height (mm) | 260.4 |
Length (mm) | 193.7 |
Motor hp | 1/8 |
Description | High-Capacity Vacuum Pump, Gauge/Reg; 1.0 cfm/24"Hg-60psi/220V |
GAST真空泵DOA-P504-BN產品介紹
整個氣體泵管路的氣流能力范圍從0.65 l/min到3.8 cfm（6.5 m3/hr），真空度高達29 in。汞柱（31毫巴），壓力高達60磅/平方英寸（4.2巴）。電機有雙頻、罩極和永久分裂電容器（PSC）版本，以及適用于世界各地的交流多電壓。
Airflow capabilities for the entire Gast Pump line range from 0.65 L/min up to 3.8 cfm (6.5 m3/hr), vacuum up to 29 in. Hg (31 mbar), and pressure up to 60 psig (4.2 bar). Electric motors are available in dual frequency, shaded pole, and permanent split capacitor (psc) versions, as well as AC multi-voltages for worldwide applications.
GAST真空泵DOA-P504-BN
愛澤工業(IZE INDUSTRIES)特價經銷、常用備件GAST 真空泵部分型號：
GAST DOA-P504-BN
GAST DOA-P704-AA
GAST DOA-P701-AA
GAST DOA-P708-AA
GAST DOA-P501-BN
GAST High-Capacity Vacuum Pump NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于GAST真空泵DOA系列 DOA-P504-BN的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for GAST products, please feel free to dial 0086-21-3100 6702/ send request email to sales@www.agcjj.cn / browse our website: www.www.agcjj.cn.
GAST真空泵DOA-P504-BN產品參數
