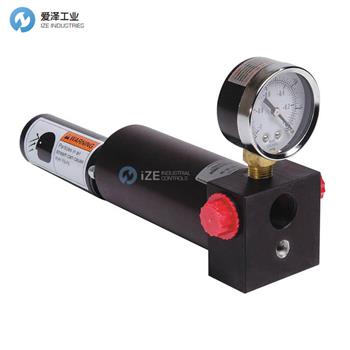

GAST真空發生器VG-260-00-00產品參數
Specification | |
Max Flow | 17.0 cfm ( 28.9 m3/h ) |
Max Vacuum | 26.0 in-Hg ( 133.0 mbar abs ) |
Weight | 1.375 lbs ( 1 kg ) |
Min Temperature | 4 °F ( -15 °C ) |
Max Temperature | 125 °F ( 52 °C ) |
Max Speed | 40 rpm |
GAST真空發生器VG-260-00-00產品介紹
在VG-260-00-00系列具有輕質聚甲醛提供耐化學性，同時還允許靈活性和簡便的安裝施工。這些Gast真空發生器無運動部件，只需很少的維護，運行非常安靜。此外，他們創新的Gast多文丘里管設計使用的壓縮空氣更少，但真空流量卻比單文丘里管單元大得多，這使其成為不希望使用常規泵的應用的理想選擇。
真空度是通過調節入口壓力來控制的，并且可以通過控制入口壓力而不是通過通向大氣的方式來調節真空管路來使發電機循環運行。在規定的最佳進口壓力下可實現最高性能和最低噪音。
多文丘里管設計提高了效率，可實現90％的真空度（27 inHg（29.92英寸大氣壓）），同時獲得高真空流量。
The VG-260-00-00 series has a lightweight Delrin? construction that provides maximum chemical resistance, while also allowing for maximum flexibility and easy mounting. Built with no moving parts, these Gast vacuum generators require minimal maintenance and operate very quietly. In addition, their innovative Gast multi-venturi design uses less compressed air, yet delivers substantially more vacuum flow than single-venturi units – making them the ideal choice for applications where a regular pump may not be preferred.
Vacuum levels are controlled by adjusting inlet pressure and generators can be cycled on and off by controlling inlet pressure rather than by regulating the vacuum line through venting to atmosphere. Maximum performance and lowest noise is achieved at stated optimum inlet pressure.
The multi-venturi design improves efficiency to achieve 90% vacuum (27 inHg against a barometric pressure of 29.92”) while attaining high vacuum flow rates.
GAST真空發生器VG-260-00-00其他常見型號：
GAST VG-010-00-00
GAST VG-020-00-00
GAST VG-012-00-00
GAST VG-015-00-00
GAST VG-065-00-00
GAST VG-130-00-00
GAST VG-140-00-02
GAST VG-260-00-00
GAST VG-260-02-00
GAST VG-260-04-00
GAST VACUUM GENERATORS NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于GAST真空發生器VG-260-00-00的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for GAST products, please feel free to dial 0086-21-3100 6702/ send request email to sales@www.agcjj.cn / browse our website: www.www.agcjj.cn.
