GRUNER風閥執行器227CS-024-05-110技術參數
Electrical data | |
Nominal voltage | 24 VAC/DC, 50/60 Hz |
Nominal voltage range | 19...29 VAC/DC |
Power consumption motor (motion) | 3,5 W |
Power consumption standby (end position) | 1,0 W |
Wire sizing | 5,5 VA |
Control | continuous control (0)2...10 VDC / Ri > (100 kΩ) 50 kΩ (0)4...20 mA / Rext. = 500 Ω |
Feedback signal | (0)2...10 VDC, max. 5 mA |
Connection motor | cable 1000 mm, 4 x 0,75 mm2 (halogen free) |
Functional data | |
Torque | 5 Nm |
Damper size | up to approx. 1 m2 |
Synchronised speed | ±5% |
Direction of rotation | selected by switch |
Manual override | gearing latch disengaged with pushbutton, self resetting |
Angle of rotation | 0°...max. 95° can be limited with adjustable mechanical end stops |
Running time | 20 s / 90° |
Sound power level | < 45 dB(A) |
Shaft coupling | clamp ? 8-15 mm / ? 8-20 mm |
Position indication | mechanical with pointer |
Service life | > 100 000 cycles (0°...95°...0°) |
Safety | |
Protection class | III (safety extra-low voltage) |
Degree of protection | IP 54 (cable downwards) |
EMC | CE (2014/30/EU) |
LVD | CE (2014/35/EU) |
RoHS | CE (2011/65/EU - 2015/863/EU - 2017/2102/EU) |
Mode of operation | Typ 1 (EN 60730-1) |
Rated impulse voltage | 0,8 kV (EN 60730-1) |
Control pollution degree | 3 (EN 60730-1) |
Ambient temperature normal operation | -30°C...+50°C |
Storage temperature | -30°C...+80°C |
Ambient humidity | 5...95% r.H., non condensing (EN 60730-1) |
Maintenance | maintenance free |
Dimensions / Weight | |
Dimensions | 117 x 67 x 62 mm |
Weight | 350 g |

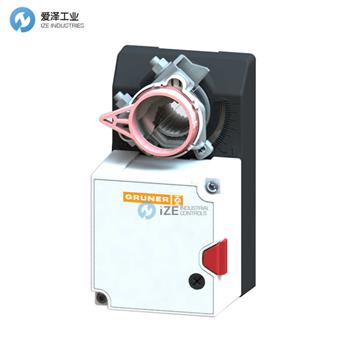

GRUNER風閥執行器227CS-024-05-110產品介紹
用于調節HVAC裝置中的風門的旋轉執行器
運行時間20秒 / 90°
扭矩 5 Nm
標稱電壓 24 VAC/DC
控制連續控制 (0)2...10 VDC
聯軸器夾 ? 8-15 mm / ? 8-20 mm
Rotary actuator for adjusting dampers in HVAC installations
Running time 20 s / 90°
Torque 5 Nm
Nominal voltage 24 VAC/DC
Control continuous control (0)2...10 VDC
Damper size up to approx. 1 m2
Shaft coupling clamp ? 8-15 mm / ? 8-20 mm

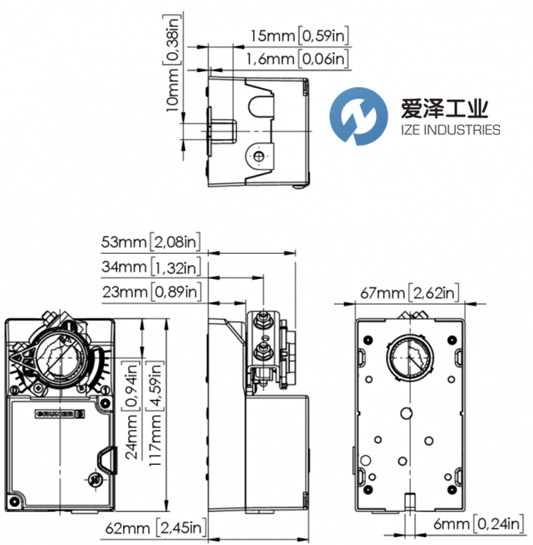

GRUNER風閥執行器227CS-024-05-110技術尺寸
GRUNER風閥執行器其他常用型號：
GRUNER 227CS-024-05-110
GRUNER 227CS-024-05E
GRUNER 227CS-024-08E
GRUNER 227CS-024-08I
GRUNER 227CS-024-10E
GRUNER Damper Actuator NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于GRUNER風閥執行器227CS-024-05-110的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for GRUNER products, please feel free to dial 0086-21-3100 6702/ send request email to sales@www.agcjj.cn / browse our website:www.www.agcjj.cn.
GRUNER風閥執行器227CS-024-05-110技術參數及尺寸
