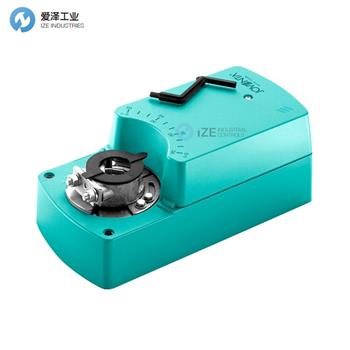

JOVENTA執行器DA1.FS技術參數
Actuator | DA1.F(S) |
Torque | 16 Nm |
Damper area | 3.0 m2 |
Running time Motor | 90...120 s |
Running time Spring return | 10 s |
Supply voltage | AC/DC24V |
Frequency | 50-60 Hz |
Power consumption | |
— Running | 10.0 W |
— At end position | 4.0 W |
Dimensioning | 18.0VA / 4A @ 2 ms |
Weight | 2.7 kg |
Control signal | 2-point |
Position signal | None |
Angle of rotation/working range | 90° (93° mech.) |
Angle of rotation/limitation | 0°...30° and 90°...60° |
Service lifetime | 60,000 rotations |
Auxiliary switches | 3(1.5)A, AC230V |
Setting range / adjustable | 5°...85° < infinity |
Noise level | 50 d B (A) |
Protection class | II |
Degree of protection | IP 54 |
Cable aperture connection | PG11 |
Mode of action | Type 1 |
Ambient conditions | |
—Operating temperature | –20...+50°C / IEC 721-3-3 |
—Storage temperature | –30...+60°C / IEC 721-3-2 |
—Humidity | 5...95% r.F. |
JOVENTA執行器SPRING RETURN系列介紹
JOVENTA SPRING RETURN電動風門執行器系列是專門為空調系統中風門的電動操作而開發的。施加控制信號后，執行器將阻尼器驅動到工作位置，同時均勻地張緊集成彈簧。斷電后，彈簧中存儲的能量會立即將阻尼器帶到安全位置。 當執行器處于電氣操作狀態時，手動操作會自動取消。緊湊的設計和通用的適配器配合旋轉角度的限制，使該執行器具有高度的通用性。
The JOVENTA SPRING RETURN electric damperactuator series has been specially developed for the motorized operation of air dampers in air conditioning systems. When the control signal is applied the actuator drives the damper to the operational position, while evenly tensioning the integrated spring. After a power failure the stored energy in the spring immediately brings the damper to the safety position. Manual operation is automatically cancelled when the actuator is in electrical operation. The compact design and universal adapter fitted with limitation of rotation angle make this actuator highly versatile.
JOVENTA執行器SPRING RETURN系列其他常用型號：
JOVENTA DA1.F
JOVENTA DA1.FS
JOVENTA DM1.1F
JOVENTA DM1.1FS
JOVENTA DA2.F
JOVENTA DA2.FS
JOVENTA DAF1.20
JOVENTA DAF1.20S
JOVENTA DBF1.20S
JOVENTA damper-actuator NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于JOVENTA執行器DA1.FS的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for JOVENTA products, please feel free to dial 0086-21-3100 6702/ send request email to sales@www.agcjj.cn / browse our website:www.www.agcjj.cn.
JOVENTA執行器DA1.FS產品參數介紹
