BELIMO執行器GMB24-3技術參數
Technical data | |
Electrical data | |
Nominal voltage | AC/DC 24 V |
Nominal voltage frequency | 50/60 Hz |
Power consumption in operation | 4 W |
Power consumption in rest position | 2 W |
Power consumption for wire sizing | 6 VA |
Transformer sizing | 6 VA (class 2 power source) |
Electrical Connection | 18 GA plenum cable with 1/2" conduit connector, |
Overload Protection | electronic throughout 0...95° rotation |
Functional data | |
Torque motor | 360 in-lb [40 Nm] |
Direction of motion motor | selectable with switch 0/1 |
Manual override | external push button |
Angle of rotation | Max. 95° |
Angle of rotation note | adjustable with mechanical stop |
Running Time (Motor) | 150 s / 90° |
Running time motor note | constant, independent of load |
Noise level, motor | 45 dB(A) |
Shaft Diameter | 1/2...1.05" round, |
Position indication | Mechanically, 30...65 mm stroke |
Safety data | |
Degree of protection IEC/EN | IP54 |
Degree of protection NEMA/UL | NEMA 2 |
Enclosure | UL Enclosure Type 2 |
Quality Standard | ISO 9001 |
Ambient temperature | -22...122°F [-30...50°C] |
Storage temperature | -40...176°F [-40...80°C] |
Ambient humidity | Max. 95% RH, non-condensing |
Servicing | maintenance-free |
Weight | |
Weight | 4.1 lb [1.9 kg] |
Materials | |
Housing material | UL94-5VA |

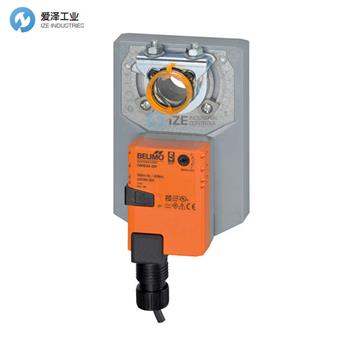

BELIMO執行器GMB24-3產品介紹
風門執行器，360 in-lb [40 Nm]，非故障安全，AC/DC 24 V，開/關，浮點
用于 HVAC 系統中阻尼器的開/關和浮點控制。 執行器尺寸應根據阻尼器制造商的規格進行。
執行器通過其通用夾具直接安裝到直徑最大為 1.05 英寸的風門軸上。 曲柄臂和多個安裝支架可用于執行器不能直接連接到阻尼軸的應用。
Damper Actuator, 360 in-lb [40 Nm], Non fail-safe, AC/DC 24 V, On/Off, Floating point
For on/off and floating point control of dampers in HVAC systems. Actuator sizing should be done in accordance with the damper manufacturer’s specifications.
The actuator is mounted directly to a damper shaft up to 1.05” in diameter by means of its universal clamp. A crank arm and several mounting brackets are available for applications where the actuator cannot be direct coupled to the damper shaft.
BELIMO執行器GMB24系列其他常用型號：
BELIMO GMB24-3
BELIMO GMB24-IP
BELIMO GMB24-MFT
BELIMO GMB24-SR
