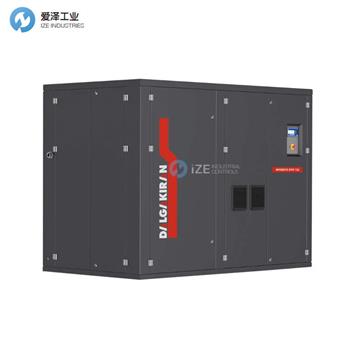

DALGAKIRAN壓縮機DPR系列

請注意:照片可能并不是實際產品,具體請參閱標題和產品規格及所有細節描述。
產品品牌:
型號:DPR 200-8,5
DALGAKIRAN壓縮機DPR 200-8,5
預估貨期:
關  鍵  詞:DALGAKIRAN壓縮機DPR 200-85INVERSYSDPR 132-85DPR
相似產品:
是否有問題?聯系我們工作人員
  郵件聯系

DALGAKIRAN壓縮機DPR 200-8,5技術參數

CHARACTERISTICS


Compressor type

Oily

Pressure (bar)

8,5

Performance

36.60 m3/min

Drive Type

Direct Transmission

Motor Power (kW)

200

Voltage (V)

380

Degree of protection

IP55

Noise level (dB)

83

Compressed Air Outlet (in)

DN80

Weight (kg)

4485

Dimensions (mm)

3530x2260x2465

Country of origin

Turkey

Model

INVERSYS DPR 200

愛澤工業(ize-industries)并不是本網站所列所有產品的授權代理商或經銷商。 本網站使用的所有產品名稱,商標,品牌等均屬于各自品牌廠家所有。 本網站在產品或圖片描述中,出現具有這些名稱,商標,品牌等信息的產品僅用于識別目的,并非旨在表明任何與持有者的從屬及授權關系。

DALGAKIRAN壓縮機DPR 200-8,5產品介紹

INVERSYS DPR 200-8.5螺桿壓縮機專為壓縮空氣需求量高達62立方米的工業企業和各行業而設計,具有顯著的節能效果。



Inversys DPR 系列螺桿壓縮機具有變頻驅動,可讓控制發動機的運行,節省能源,而現代化的螺桿機組可獲得高性能。該壓縮機的特點是高品質螺桿組、直接驅動、先進的冷卻系統、低振動和緊湊的設計。



技術特點:

- 得益于新的專利螺桿轉子輪廓,壓縮過程中的空氣損失和所需扭矩得以減少;

- 用作效率等級 IE4 電機的主驅動器(可選)。

- 通過直接傳輸,從電動機到螺桿裝置的高效動力傳輸確保了機械動力傳輸過程中的低損失,并且軸承上沒有徑向負載。

- 三級分離方案確保壓縮空氣中含油量最低(≤3 mg/m3);

- 通過不規則的壓縮空氣消耗,可節省約 30-35% 的能源。

- 壓縮機的有效空氣動力學確保了冷卻氣流的均勻分布,從而提高了主要部件的冷卻效率,降低了壓縮機內部的溫度,并降低了噪音水平。

- 符合人體工程學的壓縮機外殼帶有易于拆卸的面板,可輕松檢修壓縮機的每個部件,以便于維護;

- 能夠控制多臺壓縮機(最多 5 臺壓縮機)(55 kW 及以上)

- 所有型號均在頭頂上方設有出風口



The INVERSYS DPR 200-8.5 screw compressor is designed for industrial enterprises, various industries, with a need for up to 62 cubic meters of compressed air, where the task is to significantly save electricity.



The Inversys DPR series screw compressors have a frequency drive, which allows you to control the engine, saving electricity, and a modern screw block allows you to achieve high performance. The compressors are distinguished by a high-quality screw block, direct drive, thoughtful cooling system, low vibration and compact design.



Technical features:

- Thanks to the new patented profile of the screw block rotors, air losses during compression and the required torque are reduced;

- Use as the main drive of a motor with efficiency class IE4 (optional).

- Efficient power transmission from the electric motor to the screw block, via direct transmission, ensures the lowest losses during mechanical power transmission and no radial loads on the bearings.

- 3-stage separation scheme ensures minimum oil content in compressed air (≤3 mg/m3);

- Energy savings of about 30-35% with a torn compressed air consumption schedule.

- Efficient aerodynamics of the compressor ensures uniform distribution of the cooling air flow, which leads to increased cooling efficiency of the main units, lower temperature inside the compressor, and reduced noise levels.

- Ergonomic compressor body with easily removable panels provides easy access to each part of the compressor for easy maintenance;

- Possibility of controlling several compressors (up to 5 compressors) (55 kW and above)

- In all models, the air outlet openings are located above the head
