OJ ELECTRONICS控制器OJ Air2 Master技術參數
TECHNICAL DATA | |
Supply voltage | 24 V AC ±10%, 50/60 Hz |
Power consumption | < 5 VA |
Max. consumption | 60 VA |
Electrical connection | Screw terminals, max. 1,5 mm2 |
TCP/IP | 10/100 Mbit Ethernet, RJ45 connector |
QuickPlug? Modbus | 5 x RJ12 (6P6C) |
SD card | Max. 8 GB SDHC |
Digital inputs | 6 x internal pull-up |
Digital outputs | 2 x potential-free relays, 230 V AC 5 A |
Analogue inputs | 2 x 0-10 V DC |
Analogue outputs | 3 x 0-10 V DC |
Sensor inputs | 2 x PT1000 |
Ambient temp., operating | 0/+50°C |
Ambient temp., storage | -50/+70°C |
Dimensions | 156 x 110 x 58 mm |
Enclosure | IP20, ABS |
Weight | 430 g |
BMS protocols | BACnet and Modbus TCP/IP Modbus RTU |
Web server | Built-in |
OJ ELECTRONICS控制器OJ Air2 Master產品介紹
OJ Air2 Master 是一款定制的靈活控制器，專為通風系統設計。它具有內置的網絡服務器，具有智能界面和簡單且有吸引力的用戶界面，可實現更佳的能耗控制。OJ Air2 Master 與復雜的通風裝置相關，具有經濟吸引力。它是一種簡單可靠的自動化單元，是基于專業技術能力和應用知識而開發的。

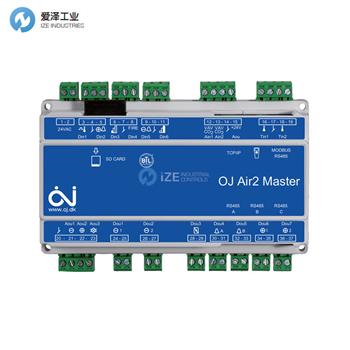

OJ Air2 Master is a custom made and flexible controller, specifically designed for ventilation systems. It has a built-in web server with intelligent interface and a simple and attractive user interface, which allows optimal energy consumption control. OJ Air2 Master is financially attractive in association with complex ventilation units. It is a simple and reliable automation unit, which has been developed based on specialised technical competence and application knowledge.
