LED2WORK燈管110510-02技術參數
Properties | |
Order number: | 110510-02 |
Model: | TUBELED_70 DC |
Type: | LED surface-mounted luminaire for machines |
Illuminant: | High Power LED |
Power consumption: | ~54 W |
Lamp luminous flux: | 6064 lm |
Lamp luminous efficiency: | ca. 132 lm/W |
Light distribution: | direct |
Light colour: | daylight white (5200 - 5700K) |
Connected load: | 24V DC ± 10% |
Connection (connector): | M12 A-type encoded |
Degree of protection: | IP67/IP69K |
Class of protection: | III |
Glare-free | opal white |
Beam angle (optics): | 100° |
Operating temperature: | -30... +70 °C |
Colour rendering (Ra): | > 85 |
Lamps lifetime: | > 60,000 h |
Housing material: | aluminium |
Cover material: | Safety glass, frosted, shatterproof |
Height [B] x Width [C]: | ? 70 mm |
Length [A]: | 300 mm |
Weight (net): | 2950 g |
Gross weight: | 3750 g |
Risk group (DIN EN 62471): | free group |
Marking: | CE, ETL Listed |
Mounting accessories: | optional |
Dimmable: | via optional accessory |
Made in: | Germany |
Feature: | Retrofitting: standardised LED luminaire for 1:1 replacement, 100% CNC approved |
LED2WORK燈管110510-02參數介紹

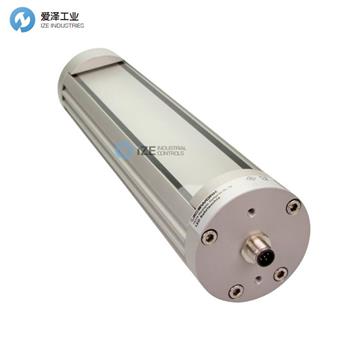

High-intensity LED machine luminaire, 100° optics, daylight white, IP67/IP69K, oil-resistant, chip-proof, aluminium profile housing, 4 mm protective glass cover, opal white glare control, 24V DC connection via M12 A-type coded, ideal for original equipment or retrofitting of machine tools.
The latest LED technology and already a classic among machine luminaires: Originating as a replacement for conventional ?70 mm tubular luminaires, the CNC suitable, high-intensity LED luminaire has quickly become the 1st choice for original equipment manufacturers or for retrofitting machine tools. The 100° optics provide wide-area, homogeneous illumination of the entire working area.
高強度LED機器燈具，100°光學，日光白，IP67/IP69K，耐油，防碎，鋁型材外殼，4 mm保護玻璃蓋，乳白色眩光控制，通過M12 A型編碼的24V DC連接 ，非常適合原始設備或機床改造。
新的 LED 技術，已經成為機器燈具的經典之作：作為傳統 ?70 毫米管狀燈具的替代品，適用于CNC的高強度LED燈具已迅速成為原始設備制造商或改裝機床的選擇。100° 光學器件為整個工作區域提供大面積、均勻的照明。
LED2WORK燈管TUBELED系列其他常用型號：
LED2WORK 110510-02
LED2WORK 110510-12
LED2WORK 110514-02
LED2WORK 110514-12
LED2WORK Light tube NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于LED2WORK燈管110510-02的疑問，請隨時與我們電聯，（021-3100 6702），我們將盡全力解決您的問題。
If you have any question for LED2WORK products, please feel free to dial 0086-21-3100 6702/ send request email to sales@www.agcjj.cn / browse our website: www.www.agcjj.cn.
