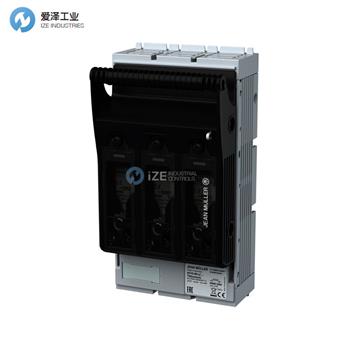

JEAN MULLER隔離開關KETO-00-3/F技術參數
Features | |
Type: | KETO-00-3/F |
Total power loss at Ith (without fuse-link) Pv: | 9 W |
Product Lifecycle: | Active product |
Rated operating voltage Ue: | 690 V |
Rated operating current Ie: | 160 A |
Product standard: | IEC/DIN EN60947-3 |
Conv. free air thermal current with fuse-links Ith: | 160 A |
Conv. free air thermal current with solid links: | 250 A |
Size: | NH00 |
Rated frequency: | 50 - 60 Hz |
Rated isolation voltage Ui: | 1,000 V |
Nominal current with fuse: | NH00-160A |
Max. permissible power dissipation per fuse-link: | 12 W |
Power loss at 80% Ith (without fuse-link): | 5.8 W |
Rated conditional short-cirquit current Icc: | 120 (AC 500V) kA |
Rated impulse voltage Uimp: | 8 kV |
Rated short-time withstand current Icw(kA): | 5 |
Utilization category 1: | 690V - 160A - AC-21B |
Utilization category 2: | 400V - 160A - AC-23B |
Utilization category 3: | 250V - 160A - DC-22B |
Ambient temperature: | -25 up to +70 (Attention derating of rated current required) °C |
Altitude: | 2000 m |
Pollution degree: | 3 |
Overvoltage category: | III |
Mounting position: | vertical / horizontal |
Electrical endurance (switching cycles): | 200 |
Mechanical endurance (total switching cycles): | 1600 |
JEAN MULLER隔離開關產品介紹
描述
依據 EN60947-3 標準，尺寸 NH00 - 160A，三極
適用于底板安裝
配備通用端子，M8 x 16/2 及 M5
頂部和底部均設有接線端子
全新設計（黑色切換手柄）
Description
according to EN60947-3, size NH00 - 160A, 3pole
for baseplate mounting
with universal terminal M8 x 16/2 x M5
cable terminal at top and bottom side
new design (black switching handle)
JEAN MULLER隔離開關其他常用型號：
JEAN MULLER KETO-00-3/F
JEAN MULLER KETO-00-3/F/ESL
JEAN MULLER KETO-00-3/S
JEAN MULLER KETO-00-3/S-P0070
JEAN MULLER KETO-00-3/R95
JEAN MULLER KETO-00-3/R95/ESL
JEAN MULLER KETO-00-3/P0070
JEAN MULLER KETO-00-3/P0095
JEAN MULLER KETO-00-3/F/ES10
JEAN MULLER KETO-00-3/R95/ES10
JEAN MULLER KETO-00-3/F/AM
