SUN-CONTROL油水分離器WT20.83 PVDF XL技術參數
Technical specifications: | |
Scope of delivery: | Housing complete with membrane, filter and, assembly bracket |
Water pressure membrane: | 0 - 2,0 bar with DMS (Dual-Membrane-System?) |
Oil pressure (10W40) membrane: | 0 – 0,3 bar with DMS (Dual-Membrane-System?) |
Gasoline (ROZ 95) Membrane: | 0 – 0,2 bar with DMS (Dual-Membrane-System?) |
The Dual-Membrane-System? of the Water-Oil-Traps is a novel membrane system. Condensates such as water, acid, alkali and liquid hydrocarbons, for example, oils and gasolines in refinery process gases are retained. | |
The design is subject to a legal protection of registered designs (registered number 20 2016 100 476) | |
Operating pressure for gas: | 0 – 3,5 bar, higher pressures on request |
Gas flow: | 0 - 180 l air/h |
Pressure drop at 60 l air/h: | approx. 20 mbar |
Pressure drop at 120 l air/h: | approx. 40 mbar |
Pressure drop at 180 l air/h: | approx. 60 mbar |
Diaphragm pore size: | < 0,1μm |
Operating temperature: | - 5° C - +110°C |
Effective filter area: | 30 cm2 |
Housing volume: | 30 ml |

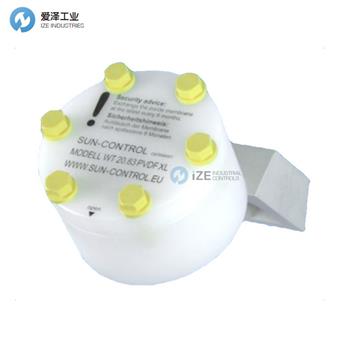

SUN-CONTROL油水分離器WT20.83 PVDF XL產品介紹
ater-Oil-Trap with extra fine particle filter
model WT 20.83 PVDF XL
- Advantageous combination of filter + membrane
- With Dual-Membrane-System? to stop of water, acid, alkali, liquid hydrocarbons and extra fine dust
- “Easy Change System” of the inner diaphragm After removing the cover screws, the diaphragm can be replaced quickly and effortlessly. It is not necessary to remove the screw connections
- All gas connections on the lower part of the housing
- Built-in XL filter for particle and permanent liquid deposition
- Bypass function built-in
- Made in Germany
帶超細顆粒過濾器的ater-Oil-Trap
型號 WT 20.83 PVDF XL
- 過濾器+膜的有利組合
- 采用 Dual-Membrane-System? 來阻擋水、酸、堿、液態碳氫化合物和超細灰塵
- 內膜片的“輕松更換系統” 拆下蓋螺釘后，可以快速、輕松地更換膜片。 無需拆除螺絲連接
- 所有氣體連接均位于外殼下部
- 內置 XL 過濾器，用于顆粒和永久液體沉積
- 內置旁路功能
- 德國制造
SUN-CONTROL油水分離器WT20.83系列其他常用型號：
SUN-Control-Analytik WT 20.83 PVDF XL
SUN-Control-Analytik WT 20.83 PVDF EL XL
SUN-Control-Analytik WT 20.83 PFA XL
