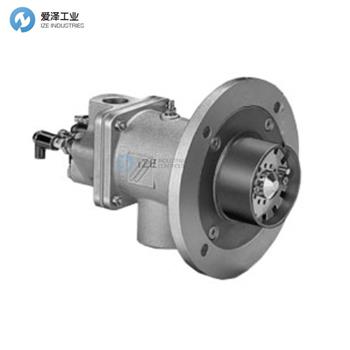

KROM SCHRODER燃燒器BIO系列

請注意:照片可能并不是實際產品,具體請參閱標題和產品規格及所有細節描述。
產品品牌:
型號:BIO65RB-150/135-(37)E
KROM SCHRODER燃燒器BIO65RB-150/135-(37)E
預估貨期:
關  鍵  詞:KROM SCHRODER燃燒器BIO65RB-150/135-(37)EBIO65RB-50/
相似產品:
是否有問題?聯系我們工作人員
  郵件聯系

KROM SCHRODER燃燒器BIO系列技術參數

Technical data

Gas supply pressure:

approx. 20 to 60 mbar

Air supply pressure:

approx. 25 to 40 mbar

each depending on flame shape and gas type

Burner length increments:

100mm

Types of gas:

natural gas or LPG (gaseous); other gases on request

Heating:

direct using a burner quarl or an attachment tube, indirect using a burner attachment tube inside the radiant tube.

Control type

staged:

On/Off, High/Low/Off

continuous:

constant λ value

Most of the burner components are made of corrosionresistant stainless steel.

Housing:

BIO: GG25,
BIOA: AlSi,
ZIO: ST

Flame control

direct ionisation control (UV control as an option)

Ignition:

direct, electrical, lance as an option

Maximum furnace temperature:

BIO/ZIO in burner quarl: up to 1600°C
with K burner head: up to 1100°C (higher temperatures on request)
BIO/ZIO with burner attachment tube: up to 800°C (higher temperatures on request).

Maximum air temperature:

BIO, ZIO: 450°C
BIOA: 200°C

愛澤工業(ize-industries)并不是本網站所列所有產品的授權代理商或經銷商。 本網站使用的所有產品名稱,商標,品牌等均屬于各自品牌廠家所有。 本網站在產品或圖片描述中,出現具有這些名稱,商標,品牌等信息的產品僅用于識別目的,并非旨在表明任何與持有者的從屬及授權關系。

KROM SCHRODER燃燒器BIO系列介紹

大容量范圍高達1000 kW(341×103 BTU / h)

模塊化設計,易于維護

堅固的燃燒器設計

電離電極和可靠的電點火功能可實現安全的火焰控制

長度增加可以對新系統或對現有系統進行現代化改造時進行個別調整

燃燒優化,低污染

用于安裝為天花板或側壁燃燒器

可結合不同形狀的燃燒室

空氣預熱到500°C(932°F)

BIOW,ZIOW:具有內部絕緣的外殼,可降低表面溫度



Large capacity range up to 1000 kW (341×103 BTU/h)

Maintenance-friendly thanks to modular design

Robust burner design

Safe flame control thanks to ionization electrode and reliable electrical ignition

Length increments enable individual adjustment either to new systems or when modernizing existing systems

Low polluting level thanks to optimized combustion

For installation as ceiling or side-wall burners

Can be combined with different combustion chamber shapes

Air preheating up to 500°C (932°F)

BIOW, ZIOW: housing with internal insulation to reduce the surface temperature

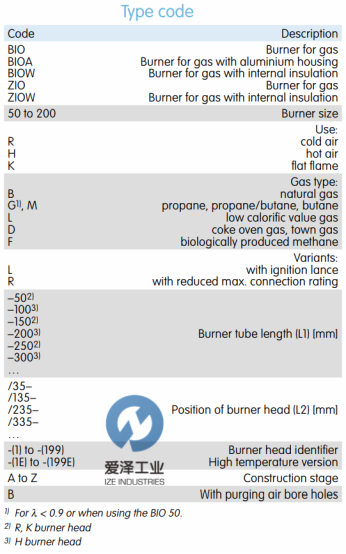

KROM SCHRODER燃燒器BIO系列選型




KROM SCHRODER燃燒器BIO系列其他常用型號:

KROM SCHRODER BIO65RB-50/35-(37)E

KROM SCHRODER BIO65RB-150/135-(37)E

KROM SCHRODER BIO65RB-250/235-(37)E

KROM SCHRODER BIO65RB-350/335-(37)E

KROM SCHRODER BIO65RB-450/435-(37)E

KROM SCHRODER BIO65HB-100/35-(34)E

KROM SCHRODER BIO65HB-200/135-(34)E

KROM SCHRODER BIO65HB-300/235-(34)E

KROM SCHRODER BIO65HB-400/335-(34)E

KROM SCHRODER BIO65HB-500/435-(34)E



KROM SCHRODER Industrial Burner NEW + ORIGINAL+ ONE YEAR WARRANTY



愛澤工業成立于2010年,定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣,液壓以及氣動解決方案的合作伙伴,我們利用我們的全球協作團隊,為客戶提供先進解決方案,市場知識以及相關增值服務來幫助優化客戶的工作效率,提高可靠性和安全性,致力于成為工業產品和解決方案的優質渠道。



如果有任何關于KROM SCHRODER燃燒器BIO65RB-150/135-(37)E的疑問,請隨時與我們溝通(021-31006702)。我們將盡全力解決您的問題。



If you have any question for KROM SCHRODER products, please feel free to dial 0086-21-3100 6702/ send request email to sales@www.agcjj.cn / browse our website:www.www.agcjj.cn.


KROM SCHRODER燃燒器BIO系列BIO65RB-150/135-(37)E介紹及選型
